XC9237B27C0R-G

Voltage Regulators - DC DC Switching Regulators Overview

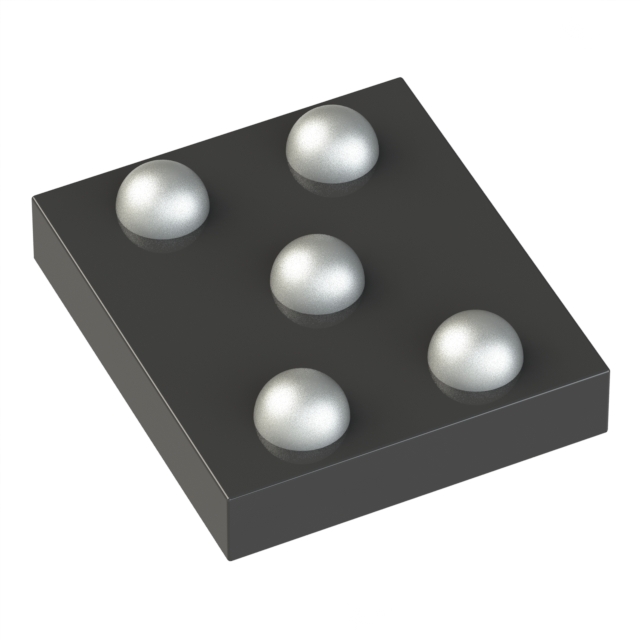

The XC9237B27C0R-G is a synchronous step-down DC/DC converter from the Torex XC9237 series. It provides a fixed output voltage of 2.7V with a maximum output current of 600mA. The device operates within an input voltage range of 2V to 6V and utilizes a switching frequency of 1.2MHz. Key electrical parameters include a quiescent current of 15µA and a shutdown current of less than 1µA. The component supports operation across a temperature range of -40°C to +85°C and is housed in a WLP-5-03-5 package.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates synchronous rectification for high conversion efficiency
• Incorporates built-in protection mechanisms against overcurrent, overvoltage, and thermal overload
• Features low quiescent current consumption to extend battery life in portable applications

Voltage Regulators - DC DC Switching Regulators Applications

• Portable electronic devices requiring efficient power management
• Battery-powered equipment utilizing single-cell lithium-ion or lithium-polymer batteries
• Embedded systems needing stable 2.7V logic supply rails

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix C0R-G to confirm the fixed 2.7V output voltage and WLP-5-03-5 packaging configuration. Ensure compatibility with RoHS directives and check for moisture sensitivity level requirements during storage and handling. Confirm availability through authorized distributors as lead times may vary based on production schedules.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact solution is required for stepping down 2V to 6V inputs to a precise 2.7V output. The choice is driven by the need for small footprint via the WLP package and high efficiency at moderate load currents up to 600mA. Consider the 1.2MHz switching frequency for balancing component size and electromagnetic interference.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the XC9237 series of synchronous buck converters manufactured by Torex Semiconductor. The series is characterized by its small outline packages and integrated protection features. The XC9237B27C0R-G specifically denotes the variant with a fixed 2.7V output, distinguishing it from adjustable or other fixed voltage versions within the same family.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct substitutes within the XC9237 series include XC9237B27CEL-G (different package) or XC9237B27D1R-G (different package). Verify pinout compatibility and thermal performance when replacing with variants from different sub-series or manufacturers offering similar 600mA synchronous buck regulators.
