XCKU060-L1FFVA1156I

Field Programmable Gate Array Overview

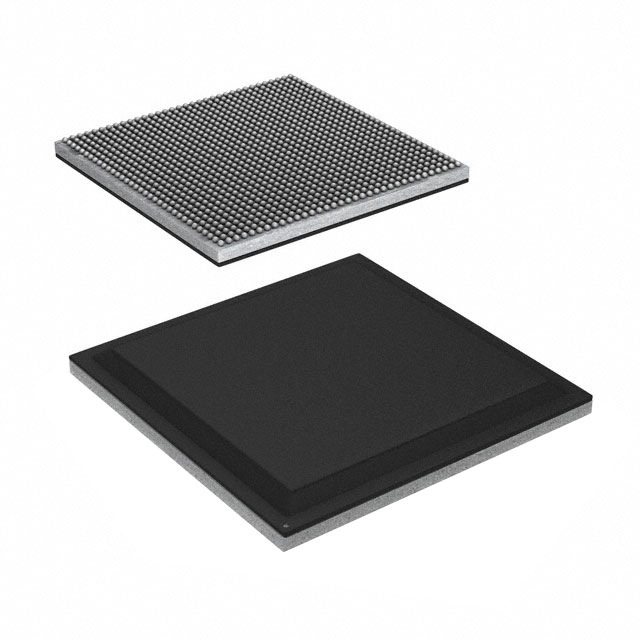

The XCKU060-L1FFVA1156I is a Kintex UltraScale Field Programmable Gate Array manufactured by AMD. It features 41,460 Adaptive Logic Modules and 725,550 logic elements within an FCBGA-1156 package. The device includes 38 Mbit of embedded memory and supports up to 548 I/Os. It operates with a core voltage of 850 mV and supports data rates of 16.3 Gb/s across 32 transceivers. The component functions reliably within a temperature range of -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Supports high-speed serial communication via integrated transceiver channels capable of 16.3 Gb/s data rates.
• Provides substantial programmable logic density for complex digital signal processing and system acceleration.
• Integrates significant embedded memory resources suitable for buffering and microarchitecture storage.

Field Programmable Gate Array Applications

• High-speed fiber optic communication systems
• Industrial control and automation platforms
• Data center infrastructure acceleration

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'L1' against official AMD documentation to confirm speed grade and pin compatibility. Ensure the FCBGA-1156 footprint matches the target PCB design. Confirm moisture sensitivity levels and reflow soldering profiles prior to assembly to prevent package damage during manufacturing.

Field Programmable Gate Array Selection Notes

Select this model when requiring a balance of logic capacity and high-speed interface connectivity. Compare the 548 I/O count against system requirements to ensure sufficient external connectivity. Evaluate the 32-transceiver configuration against bandwidth needs for serial protocols such as Ethernet or PCIe.

Field Programmable Gate Array Part Context

This component belongs to the Kintex UltraScale family, designed for mid-to-high-end applications. It shares architectural similarities with other XCKU060 variants but differs in speed grading and package options. The L1 suffix indicates a specific performance bin within the standard industrial temperature range.

Field Programmable Gate Array Replacement Considerations

XCKU060-1FFVA1156I

Field Programmable Gate Array FAQ

What is the maximum data rate supported by the transceivers?

The integrated transceivers support a maximum data rate of 16.3 Gb/s.

How many Adaptive Logic Modules are included in this FPGA?

The device contains 41,460 Adaptive Logic Modules (ALMs).

What is the operating temperature range for this component?

The specified operating temperature range is from -40°C to +100°C.
