XCKU115-L1FLVA1517I

Field Programmable Gate Array Overview

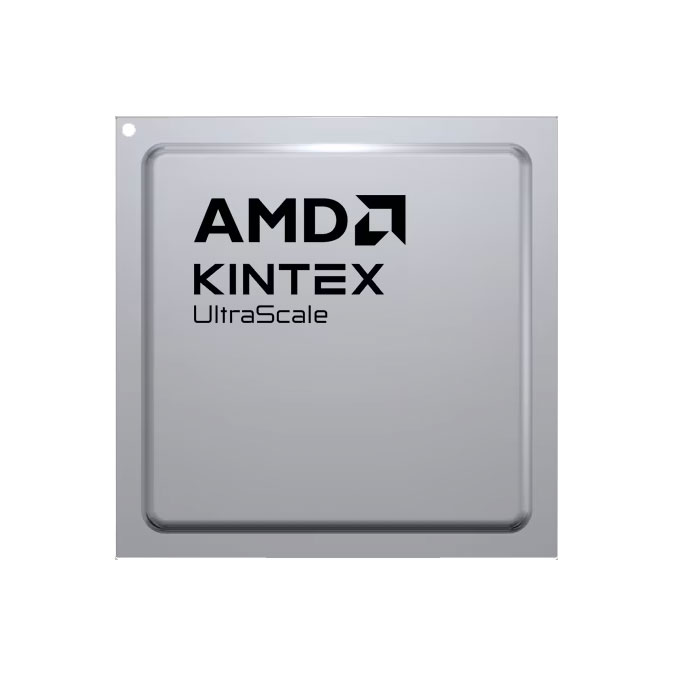

The XCKU115-L1FLVA1517I is a Kintex UltraScale Field Programmable Gate Array manufactured by AMD. It features 82,920 Adaptive Logic Modules and 1,451,000 logic elements within an FBGA-1517 package. The device includes 75.9 Mbit of embedded memory and supports up to 672 I/Os. It operates at a core voltage of 850 mV with a data rate of 16.3 Gb/s across 64 transceivers. The industrial temperature range spans from -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Industrial-grade operational capability for extended temperature environments
• High-density programmable logic architecture for complex system integration
• Integrated high-speed serial transceivers for advanced connectivity

Field Programmable Gate Array Applications

• Wireless infrastructure baseband processing
• Data center networking acceleration
• Industrial control systems requiring wide temperature tolerance

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'L1' against official AMD documentation to confirm it denotes the industrial temperature grade (-40°C to +100°C) rather than commercial grade. Ensure the FLVA1517 package type matches the target PCB footprint. Confirm RoHS compliance status through the manufacturer's current datasheet before finalizing procurement specifications.

Field Programmable Gate Array Selection Notes

Select this component when designing for harsh environments requiring operation below 0°C. Compare pin counts and I/O capabilities against the commercial variant XCKU115-1FLVA1517C if thermal constraints allow. Validate that the 16.3 Gb/s transceiver speed meets the interface requirements without needing higher-performance family members.

Field Programmable Gate Array Part Context

This part belongs to the Kintex UltraScale family, positioned as a cost-effective solution for mid-range applications. It utilizes TSMC’s 16 nm FinFET process technology. The series balances performance and power consumption, targeting applications like packet processing and DSP-intensive functions where moderate capacity is sufficient.

Field Programmable Gate Array Replacement Considerations

Publicly confirmed direct substitutes are not available in the provided source material. Designers should consult AMD's official cross-reference tools or contact AMD sales for verified equivalent parts or next-generation replacements.
