XCKU15P-2FFVE1760I

Field Programmable Gate Array Overview

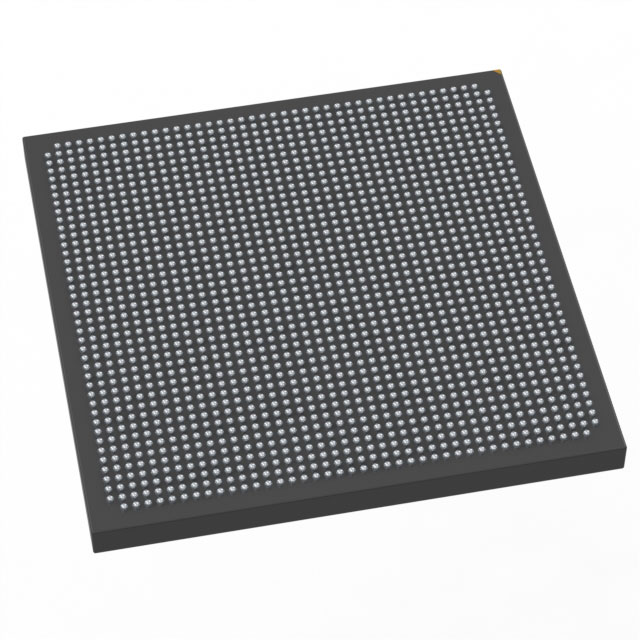

The XCKU15P-2FFVE1760I is a Kintex UltraScale+ FPGA manufactured by AMD, designed for high-performance digital signal processing and communication applications. It features 1,143,450 system logic cells and 1,968 DSP slices within a 1760-ball FCBGA package. The device integrates 70.6 Mbit of embedded memory and supports data rates up to 32.75 Gb/s via its transceivers. Operating at a core voltage range of 0.825 V to 0.876 V, it functions reliably across an industrial temperature range of -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture with over one million system logic cells
• Integrated enhanced DSP slices supporting complex mathematical operations
• Multi-rate high-speed serial transceivers for diverse interface standards
• Large embedded memory capacity for efficient data buffering

Field Programmable Gate Array Applications

• High-speed networking and telecommunications equipment
• Digital signal processing in radar and electronic warfare systems
• Industrial automation and control systems
• Medical imaging hardware acceleration

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' indicates industrial temperature rating compliance before ordering. Confirm package availability and lead times directly with authorized distributors as supply levels fluctuate. Ensure export control documentation requirements are met if shipping from restricted regions. Cross-reference the full part number against official AMD catalogs to avoid counterfeit components.

Field Programmable Gate Array Selection Notes

Select this model when balancing high logic density with moderate power consumption compared to Virtex series devices. Compare transceiver counts and memory sizes against similar Kintex UltraScale+ parts like the XCKU15P-2FFVA1760I to match I/O requirements. Evaluate thermal management needs based on the target application's computational load and ambient conditions.

Field Programmable Gate Array Part Context

This component belongs to the AMD Kintex UltraScale+ family, positioned between Artix and Virtex series in terms of performance and cost. It utilizes 16nm FinFET technology to deliver improved performance-per-watt ratios over previous generation FPGAs. The series is widely adopted in infrastructure and industrial sectors requiring flexible, reprogrammable hardware solutions.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements may include other speed grades within the same package family, such as the XCKU15P-1FFVE1760I or XCKU15P-3FFVE1760I, provided timing constraints allow. Verify functional compatibility with higher or lower speed grades before substitution.
