XD242408S3PTSS6

Overview

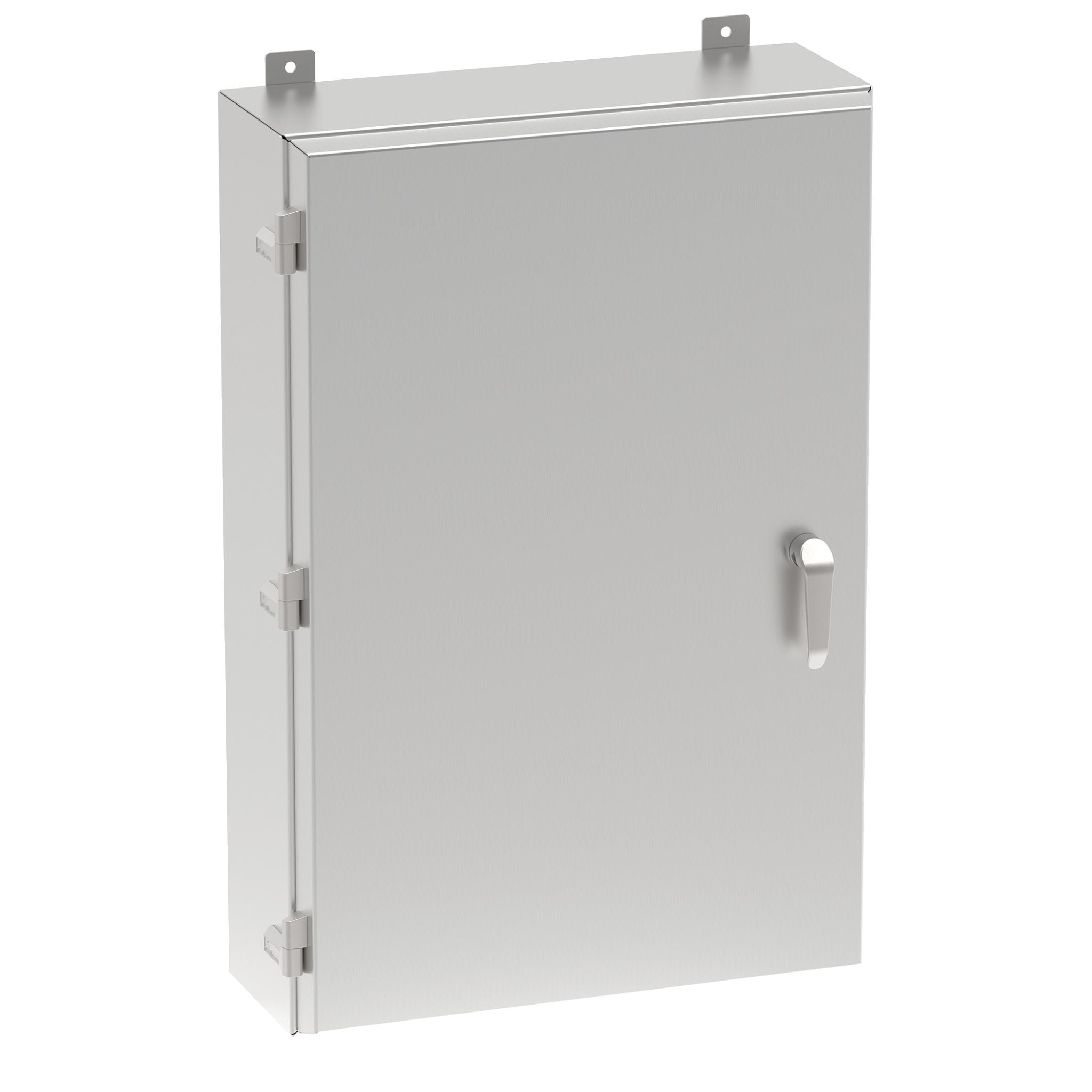

The XD242408S3PTSS6 is a wall-mount enclosure manufactured by Hoffman Enclosures, Inc. It features an unpainted stainless steel 316L construction with dimensions of 24 inches in height, 24 inches in width, and 8 inches in depth. The unit utilizes a three-point latching mechanism for secure closure. This enclosure is designed for extreme environments and meets NEMA 4X, IP66, and UL 508A standards.

Feature Summary

• Constructed from unpainted stainless steel 316L for superior corrosion resistance
• Equipped with a three-point latching system to ensure a tight seal
• Designed specifically for operation in extreme environmental conditions

Applications

• Harsh industrial outdoor installations requiring high corrosion resistance
• Marine or coastal equipment protection
• Chemical processing plant control panels
• Food and beverage industry washdown areas

Procurement Notes

Verify the specific material grade (316L) and finish (unpainted) against project requirements. Confirm that the three-point latch configuration matches the security needs. Ensure the wall-mount style fits the installation space. Check for any required accessories such as mounting hardware or internal rails not included in the base unit.

Selection Notes

Select this model when standard stainless steel is insufficient due to aggressive chemical exposure or saltwater environments. The 316L grade offers better pitting resistance than 304 stainless. Consider the 8-inch depth for component clearance. Verify that the wall-mount design is suitable compared to floor-standing options if space allows.

Part Context

This part belongs to the Hoffman XD series, which is engineered for extreme environments. The XD line typically features heavy-duty construction and enhanced sealing capabilities. The S3PT designation indicates the stainless steel material and three-point latch type. It is distinct from standard Concept or Eclipse series enclosures.

Replacement Considerations

Direct substitutes may include other Hoffman XD series models with similar dimensions but different latch types or materials. Cross-brand replacements require verifying exact dimensional compatibility and ingress protection ratings. Ensure the substitute also supports 316L stainless steel if corrosion resistance is critical.
