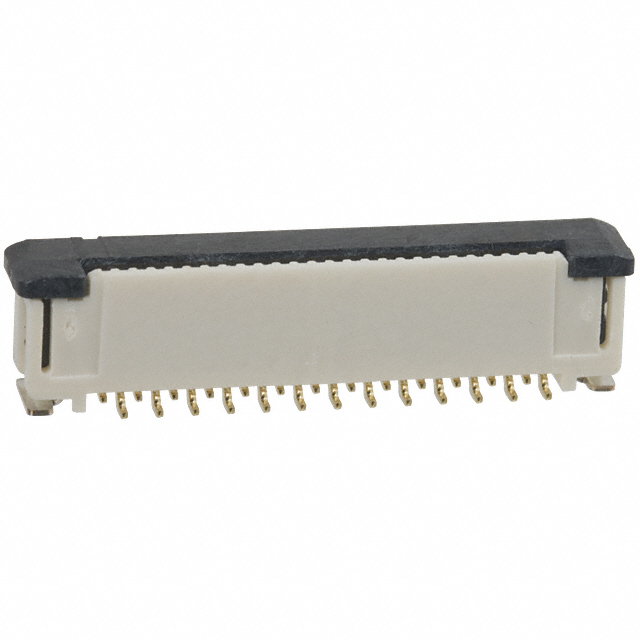

FFC, FPC (Flat Flexible) Connector Assemblies XF2J262411AR100BYOMZ product image

XF2J262411AR100BYOMZ

Description：CONN FPC VERT 26POS 0.5MM SMD
Series：XF2J
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:c50553c2af53 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XF2J262411AR100BYOMZ is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is CONN FPC VERT 26POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for XF2J262411AR100BYOMZ

Description：CONN FPC VERT 26POS 0.5MM SMD
Series：XF2J
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Flat Flex Type：FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：26
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.163" (4.15mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Polyamide (PA46), Nylon 4/6
Actuator Material：-
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-30°C ~ 85°C
Material Flammability Rating：UL94 V-0
