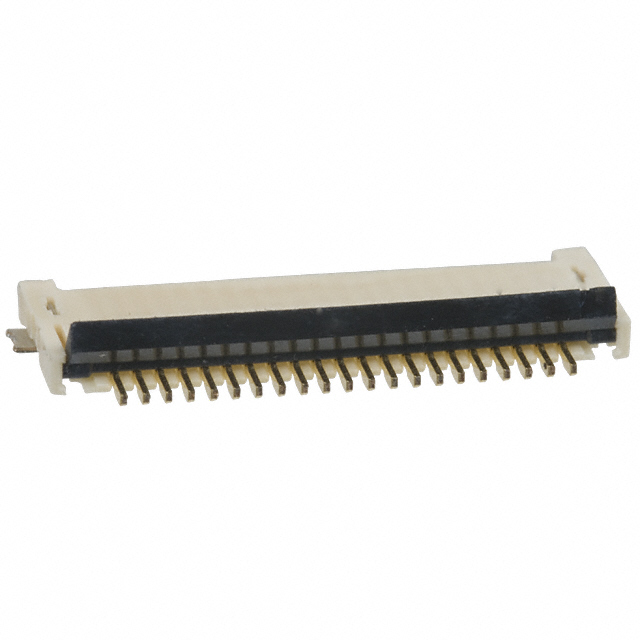

FFC, FPC (Flat Flexible) Connector Assemblies XF2N-3215-3 product image

XF2N-3215-3

Description：CONN FPC 32POS 0.5MM R/A
Series：XF2N
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:ff0baaf21bfd Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XF2N-3215-3 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is CONN FPC 32POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for XF2N-3215-3

Description：CONN FPC 32POS 0.5MM R/A
Series：XF2N
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：32
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：-
Locking Feature：Rotary Lock, Backlock
Cable End Type：Straight
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Liquid Crystal Polymer (LCP)
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-30°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for XF2N-3215-3

XF2N-3215-3
