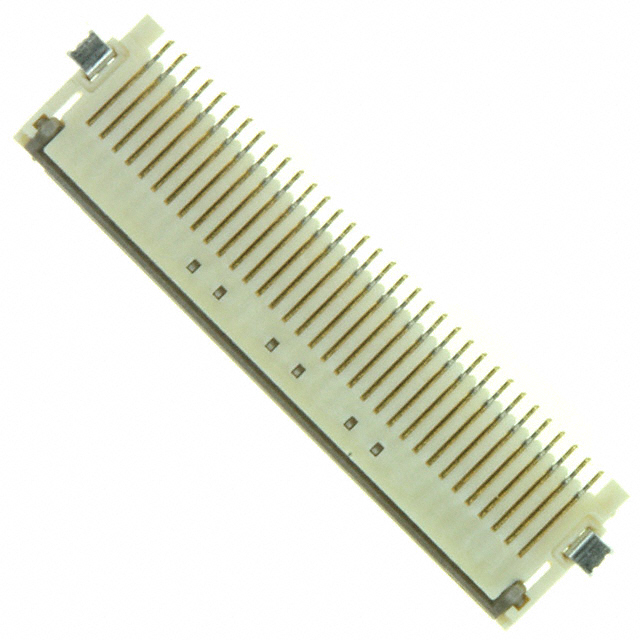

FFC, FPC (Flat Flexible) Connector Assemblies XF2R34154A product image

XF2R34154A

$2.53

Description：CONN FPC 34POS 0.5MM R/A
Series：XF2R
Mfr：Omron Electronics Inc-EMC Div
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:01fa8f0111f3 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XF2R34154A is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is CONN FPC 34POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for XF2R34154A

Description：CONN FPC 34POS 0.5MM R/A
Series：XF2R
Mfr：Omron Electronics Inc-EMC Div
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：34
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.12mm
Height Above Board：0.035" (0.88mm)
Locking Feature：Rotary Lock, Backlock
Cable End Type：Tabbed
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Liquid Crystal Polymer (LCP)
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-30°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for XF2R34154A

XF2R34154A
