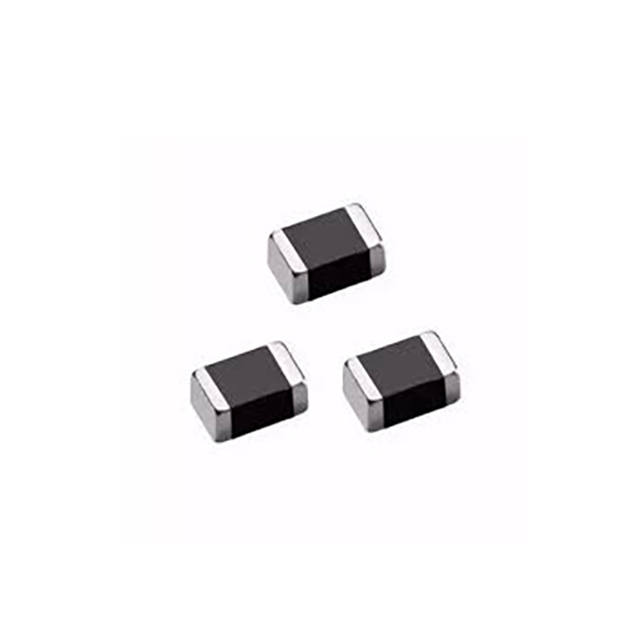

XFEB160808-600-4.8A

$0.10

Description：FERRITE BEAD 60 OHM 0603 1LN
Series：-
Mfr：XFMRS
Package：Tape & Reel (TR)

SKU:b03b635106d7 Category: Ferrite Beads and Chips Brand: XFMRS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 60 OHM 0603 1LN
Series：-
Mfr：XFMRS
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：1
Impedance @ Frequency：60 Ohms @ 100 MHz
Current Rating (Max)：4.8A
DC Resistance (DCR) (Max)：15mOhm
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Package / Case：0603 (1608 Metric)
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Features：-

Download product information

XFEB160808-600-4.8A

Overview

The XFEB160808-600-4.8A is a surface-mount ferrite bead from the XFMRS series, designed for electromagnetic interference suppression in compact electronic circuits. It features a 0603 (1608 metric) package size with an impedance of 60 Ohms at 100 MHz. The component supports a root-mean-square current rating of 4.8 Amperes and exhibits a maximum DC resistance of 15 milliohms. It operates within a temperature range of -55°C to 125°C and complies with AEC-Q200 qualification standards for automotive reliability.

Feature Summary

Provides high-current noise filtering capability suitable for power line applications
Compact 0603 footprint enables dense circuit board layouts
Automotive-grade construction ensures reliability under thermal stress

Applications

Power supply input/output filtering
High-current signal line noise suppression
Automotive electronics EMI mitigation

Procurement Notes

Verify the specific suffix '4.8A' against official manufacturer documentation to confirm the 4.8A current rating and 15mOhm DCR specifications. Ensure the ordering part number matches the exact impedance and package requirements for your design. Cross-reference with the latest datasheet to confirm compliance with AEC-Q200 standards if used in automotive contexts.

Selection Notes

Select this component when high current handling is required alongside moderate impedance values. The low DC resistance minimizes voltage drop and power loss in high-current paths. Consider the 0603 package constraints regarding available PCB space and thermal dissipation capabilities during the layout phase.

Part Context

This ferrite bead belongs to the XFEB160808 series, which utilizes a standard 1608 metric case size. The series offers various impedance and current ratings to suit different filtering needs. XFMRS manufactures these components to meet rigorous quality standards, including automotive qualifications, ensuring consistent performance across diverse industrial and consumer applications.

Replacement Considerations

Direct substitutes must match the 60 Ohm impedance at 100 MHz, 4.8A current rating, and 0603 package dimensions. Verify that alternative components also meet AEC-Q200 requirements if the application demands automotive-grade reliability.
