XFHCL6-R10M

Fixed Inductors Overview

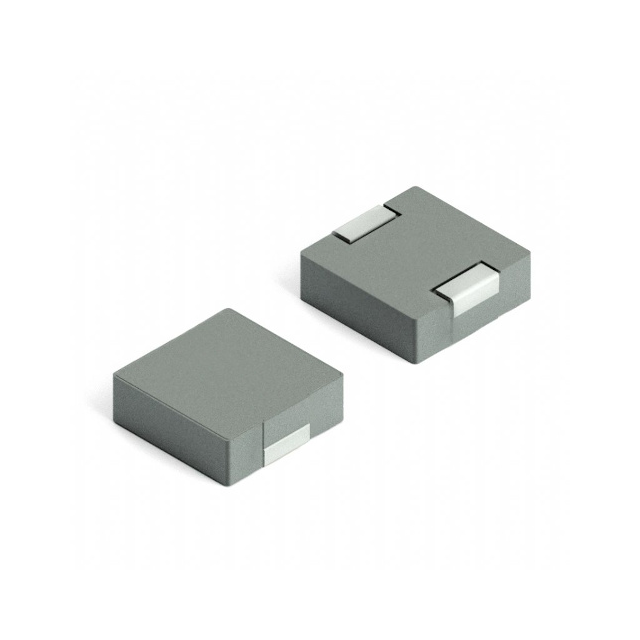

The XFMCL6-R10M is a fixed shielded molded inductor manufactured by XFMRS. It features an inductance of 100 nH and a maximum DC resistance of 1.7 mOhm. The component supports a rated current of 32 A, with a saturation current (Isat) rating of 60 A. Designed for surface mount applications, this SMD inductor provides high-current handling capabilities suitable for power supply circuits requiring compact shielding and low impedance characteristics.

Fixed Inductors Feature Summary

• Shielded molded construction to minimize electromagnetic interference
• High saturation current capability for stable power delivery
• Low DC resistance design for improved efficiency

Fixed Inductors Applications

• Power supply modules
• DC-DC converter circuits
• Server power distribution networks

Fixed Inductors Procurement Notes

Verify the exact part number against official XFMRS documentation to ensure compatibility with specific circuit requirements. Confirm that the 32 A rated current and 60 A saturation current meet the design specifications. Check for any specific ordering suffixes or packaging options provided by authorized distributors. Ensure the surface mount package type aligns with the PCB layout constraints.

Fixed Inductors Selection Notes

Select this component when a low-inductance, high-current shielded inductor is required for space-constrained designs. The 100 nH value suits high-frequency switching applications. Consider the 1.7 mOhm DCR for thermal management needs. Evaluate the 60 A Isat margin against peak load conditions to prevent core saturation during transient events.

Fixed Inductors Part Context

This component belongs to the XFMRS fixed inductor family, specifically designed for robust power electronics applications. The XFHCL6 series offers shielded performance to reduce noise coupling in dense electronic assemblies. It serves as a critical passive element in modern power conversion systems where reliability and high current density are paramount.

Fixed Inductors Replacement Considerations

Consult official XFMRS substitution guides for verified alternatives. Cross-reference inductance, current ratings, and physical dimensions before swapping components. Generic substitutes may not match the specific shielding or saturation characteristics of the original part.
