XFWCMC706035-132

$0.51

Description：CMC 2.5A 2LN 1.3KOHM SMD AECQ200
Series：-
Mfr：XFMRS
Package：Tape & Reel (TR)

SKU:9b88f6ecc739 Category: Common Mode Chokes Brand: XFMRS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.5A 2LN 1.3KOHM SMD AECQ200
Series：-
Mfr：XFMRS
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：2.5A
DC Resistance (DCR) (Max)：21mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max)：0.150" (3.80mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1.3 kOhms @ 100 MHz

Download product information

XFWCMC706035-132

Overview

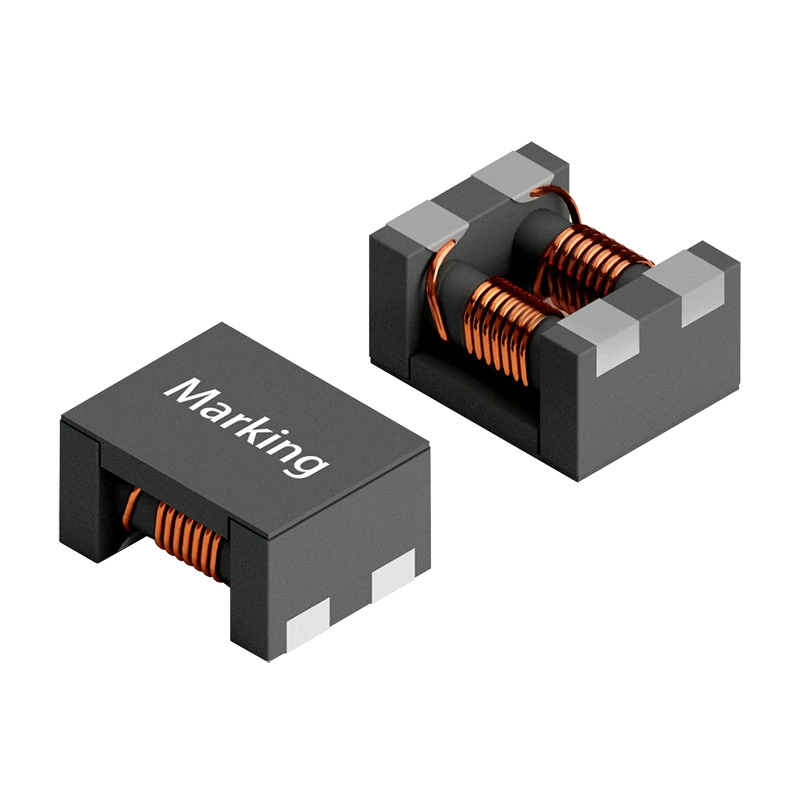

The XFWCMC706035-132 is a surface-mount common mode choke manufactured by XFMRS. It features a two-line configuration designed for signal integrity protection in electronic circuits. The component is rated for a continuous current of 2.5A and provides a minimum impedance of 1.3kΩ at 100MHz. It complies with the AEC-Q200 qualification standard, ensuring reliability for automotive applications.

Feature Summary

Surface-mount construction for automated assembly
Two-line topology for differential signal filtering
Automotive-grade reliability certification

Applications

Automotive data bus line protection
High-speed interface noise suppression
Signal integrity enhancement in vehicle electronics

Procurement Notes

Verify the complete part number including suffixes to ensure correct impedance and current ratings. Confirm AEC-Q200 compliance requirements match specific project standards. Check package dimensions against PCB footprint specifications before ordering.

Selection Notes

Select this component when automotive-grade common mode chokes are required for high-frequency noise attenuation. Ensure the 2.5A current rating meets circuit load requirements. Verify that the 1.3kΩ impedance at 100MHz aligns with target EMI suppression frequencies.

Part Context

This model belongs to the XFMRS CMC series of common mode chokes. These components are engineered for compact surface-mount applications requiring reliable noise filtration. The series supports various impedance values tailored for different frequency ranges and current loads.

Replacement Considerations

Cross-reference with other XFMRS models sharing the same package and current rating. Verify impedance curves and DC resistance values match original design specifications before substitution.
