XG-2102CA 250.0000M-LGRNL3

Oscillators Overview

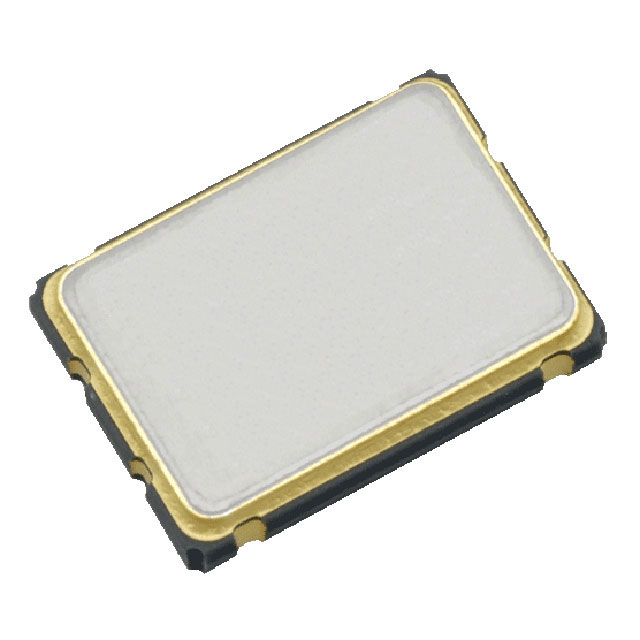

The XG-2102CA 250.0000M-LGRNL3 is a Surface Mount SAW oscillator manufactured by EPSON, operating at a frequency of 250 MHz with LVDS output signals. It functions on a 3.3V supply voltage and features an enable/disable control function. The component utilizes a 6-SMD, No Lead package measuring 7.00mm x 5.00mm x 1.40mm. It offers a frequency stability of ±50ppm and operates within a temperature range of -5°C to +85°C. Maximum supply current is 30mA, with a maximum disabled current of 15mA.

Oscillators Feature Summary

• SAW technology provides stable frequency generation for high-speed digital applications
• LVDS output interface ensures low noise and reliable signal transmission
• Enable/Disable functionality allows for power management and system synchronization control

Oscillators Applications

• Industrial-grade frequency reference for synchronization needs
• High-speed data communication systems requiring precise timing
• Network equipment clocking and distribution

Oscillators Procurement Notes

Verify the specific suffix LGRNL3 against official EPSON documentation to confirm pinout compatibility and electrical characteristics. Ensure the procurement source provides valid RoHS3 compliance certificates. Confirm that the supplier handles the component correctly regarding moisture sensitivity level 1 requirements during storage and handling processes.

Oscillators Selection Notes

Select this model when a 250 MHz LVDS oscillator is required for industrial environments. The ±50ppm stability suits general synchronization tasks. Consider the 6-SMD footprint for PCB layout constraints. Verify that the 3.3V logic levels match the receiving circuitry inputs before integration into the design.

Oscillators Part Context

This component belongs to the XG-2102CA series of SAW oscillators from EPSON Timing. The series is designed for robust performance in demanding electronic applications. The specific part number indicates the 250 MHz frequency variant with LVDS outputs and industrial temperature rating, distinguishing it from other frequency or output type variants within the same family.

Oscillators Replacement Considerations

EG-2121CA 250.0000M-LGRNL3 is listed as a similar alternative by EPSON. Verify pin compatibility and electrical specifications before substitution. Other manufacturers may offer equivalent SAW oscillators, but direct replacement requires careful validation of output drive strength and package dimensions.
