XG5032HAN 100.000000M-CLDA3

Oscillators Overview

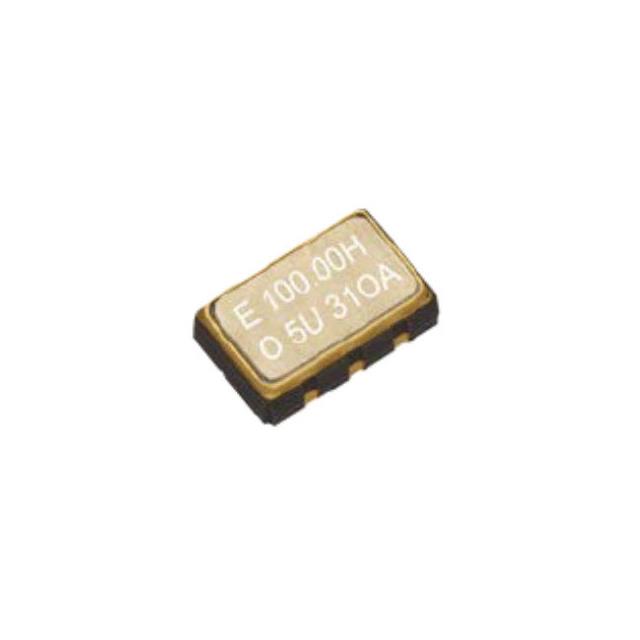

The XG5032HAN 100.000000M-CLDA3 is a Surface Acoustic Wave (SAW) oscillator manufactured by Epson Timing. It operates at a nominal frequency of 100 MHz with a frequency stability of +/-100 PPM. The device supports a supply voltage range from 2.97 V to 3.63 V and draws a maximum current of 35 mA. It features HCSL output format and functions within an operating temperature range of -5°C to +85°C. The component utilizes a 6-SMD, no-lead surface mount package with physical dimensions of 5 mm x 3.2 mm x 1.4 mm.

Oscillators Feature Summary

• Utilizes Surface Acoustic Wave technology for stable signal generation
• Supports enable and disable control functions via input pin
• Provides HCSL differential output compatibility
• Designed for high-temperature operation up to 85°C

Oscillators Applications

• High-speed serial communication interfaces requiring precise clocking
• Data acquisition systems needing stable timing references
• Industrial control equipment operating in elevated temperature environments
• Telecommunications infrastructure components

Oscillators Procurement Notes

Verify the specific suffix CLDA3 against official Epson documentation to confirm the exact temperature range (-5 to 85°C) and aging specifications. Ensure the required supply voltage aligns with the 3.3V nominal requirement and that the HCSL output format matches the target circuit design. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 100 MHz SAW oscillator is required for applications demanding operation up to 85°C. The HCSL output interface is suitable for high-speed digital circuits. Consider the 6-pin SMD footprint for PCB layout constraints. Verify that the +/-100 PPM stability meets the system timing jitter requirements compared to lower-stability alternatives.

Oscillators Part Context

This part belongs to the XG5032HAN series of SAW oscillators from Epson Timing. The series offers various frequency options and stability grades. The specific model integrates enable/disable functionality and is designed for compact electronic designs requiring reliable clock signals in demanding thermal conditions.

Oscillators Replacement Considerations

Direct substitutes include other Epson models within the XG5032HAN series with matching frequency and package dimensions. Cross-vendor replacements must match the 100 MHz frequency, HCSL output, and 6-SMD no-lead package form factor while verifying electrical parameter compatibility.
