XI24M00000S412

Crystals Overview

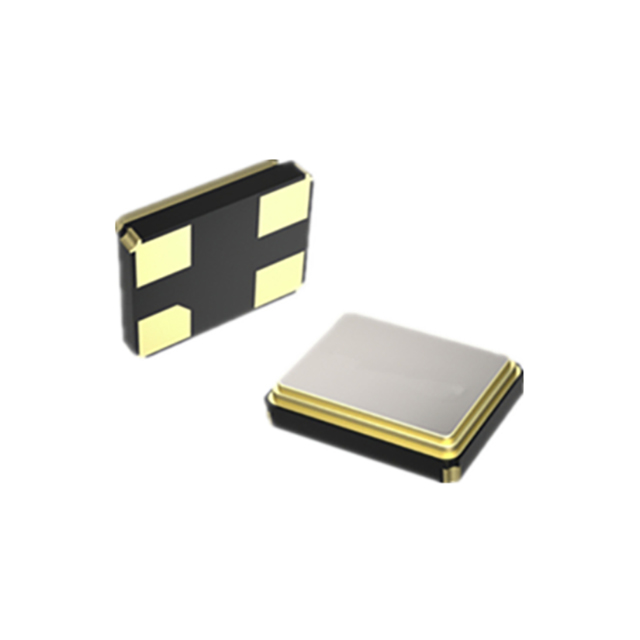

The TGS XI24M00000S412 is a surface-mount MHz crystal oscillator belonging to the CM22 series. It operates at a nominal frequency of 24.0000MHz with a frequency tolerance of ±10ppm and a load capacitance of 12pF. The component features a seam seal package measuring 2.5mm in length, 2.0mm in width, and 0.55mm in height, utilizing four pads for connection. It supports an operating temperature range from -40°C to +85°C and exhibits a frequency stability of ±30ppm.

Crystals Feature Summary

• Seam sealed metal package construction for enhanced environmental protection
• Compact surface-mount design suitable for space-constrained PCB layouts
• Four-pad configuration ensuring reliable electrical connectivity

Crystals Applications

• High-frequency full waveform inversion data processing systems
• Geological seismology equipment requiring precise timing references
• Ultra-high density node data acquisition hardware

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure compatibility with required load capacitance and tolerance specifications. Confirm that the seam seal package dimensions align with the target printed circuit board footprint. Cross-reference the part number with the CM22 series datasheet to validate operational temperature ranges and electrical characteristics before finalizing procurement orders.

Crystals Selection Notes

Select this component when a compact, high-stability crystal is required for applications demanding ±10ppm frequency tolerance. Ensure the design accommodates the 2.5x2.0mm surface-mount footprint and utilizes a 12pF load capacitance network. Consider the -40°C to +85°C operating range to verify suitability for the intended environmental conditions of the electronic assembly.

Crystals Part Context

This part belongs to the TGS CM22 series of MHz crystals, characterized by small form factors and robust performance. It serves as a critical timing element in precision electronics, particularly within specialized geophysical surveying tools and seismic data processing units where accurate frequency generation is essential for signal integrity and data resolution.

Crystals Replacement Considerations

Consult official substitution lists for direct equivalents within the CM22 series. Verify that any alternative maintains identical 24MHz frequency, 12pF load capacitance, and ±10ppm tolerance. Ensure physical dimensions and pad configurations match to guarantee mechanical fit without modifying the existing circuit board layout.
