XIHEELAANF-16.000000

Crystals Overview

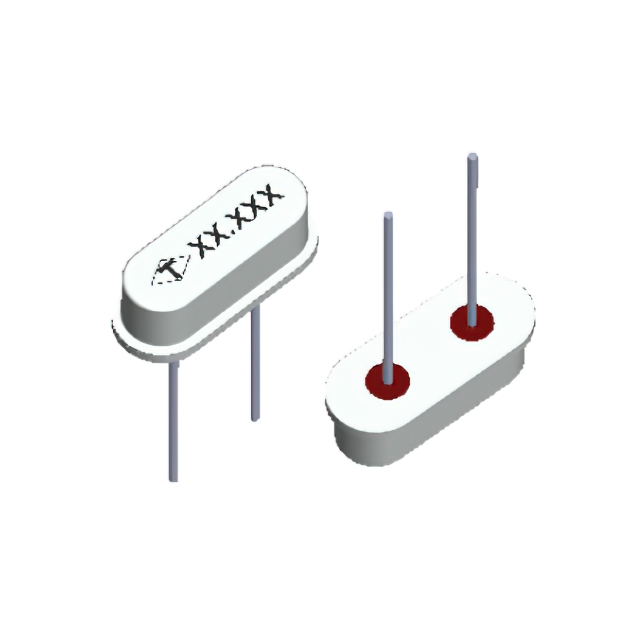

The Taitien XIHEELAANF-16.000000 is a through-hole MHz crystal designed for precise timing applications. It operates at a nominal frequency of 16 MHz with a stability and tolerance of ±30ppm. The component features a load capacitance of 20pF and an equivalent series resistance (ESR) of 30 Ohms. It is housed in an HC49/US package, suitable for standard mounting configurations. The device supports an operating temperature range from -40°C to +85°C, ensuring reliable performance across diverse environmental conditions.

Crystals Feature Summary

• Through-hole HC49/US package design
• ±30ppm frequency stability and tolerance
• Low equivalent series resistance of 30 Ohms

Crystals Applications

• Microcontroller clock sources
• Embedded system timing circuits
• Digital logic frequency control

Crystals Procurement Notes

Verify the specific package variant and lead finish upon ordering. Confirm that the supply chain documentation aligns with RoHS compliance requirements. Ensure the receiving inspection checks for physical integrity of the HC49/US housing. Cross-reference the manufacturer's latest datasheet for any updates on material composition or testing standards before final procurement approval.

Crystals Selection Notes

Select this component when a robust through-hole solution is required for 16 MHz timing. The HC49/US form factor offers mechanical stability for high-vibration environments compared to surface-mount alternatives. Consider the 30 Ohm ESR value for circuit impedance matching. This part is appropriate for general-purpose digital circuits where moderate frequency precision is sufficient.

Crystals Part Context

This model belongs to Taitien's standard MHz crystal lineup, utilizing quartz resonator technology. It complements their surface-mount offerings by providing a traditional through-hole option. The product line focuses on cost-effective frequency control solutions for consumer and industrial electronics requiring stable clock signals.

Crystals Replacement Considerations

Direct substitutes must match the 16 MHz frequency, HC49/US package, and 20pF load capacitance. Verify ESR compatibility within the 30 Ohm range. Check if alternative manufacturers offer identical pin spacing and height specifications to ensure board layout compatibility without modification.
