XKYED8K5JI-112YXC-32.768K

Crystals Overview

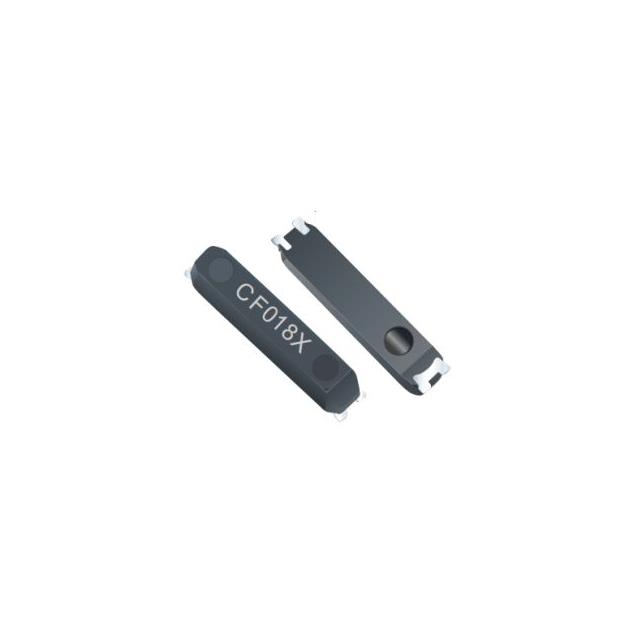

The YXC XKYED8K5JI-112YXC-32.768K is a 32.768 kHz crystal resonator designed for precision timing applications. It features a frequency tolerance of ±20ppm and operates within a temperature range of -40°C to +85°C. The component utilizes a 7pF load capacitance and exhibits an equivalent series resistance (ESR) of 50 kOhms maximum. It is housed in a compact 4-SMD, flat lead package with dimensions of 7mm x 1.5mm x 1.4mm, suitable for surface-mount assembly.

Crystals Feature Summary

• Provides stable 32.768 kHz oscillation for real-time clock synchronization
• Designed for low-power consumption in portable electronic devices
• Supports surface-mount technology for automated PCB assembly

Crystals Applications

• Real-time clock circuits in microcontrollers
• Portable communication devices
• Small consumer electronics requiring precise timekeeping

Crystals Procurement Notes

Verify the specific load capacitance requirement against your circuit design, as variants exist with different capacitance values. Confirm the package dimensions match your footprint. Ensure the operating temperature range meets your environmental specifications. Cross-reference the manufacturer part number with official distributor catalogs to confirm availability and authenticity before ordering.

Crystals Selection Notes

Select this component when a standard 32.768 kHz frequency is required for timekeeping functions. Consider the ±20ppm tolerance for general-purpose timing rather than high-precision navigation systems. Evaluate the 4-SMD flat lead package size against available board space constraints. Compare ESR specifications with oscillator circuit requirements to ensure reliable startup.

Crystals Part Context

This crystal belongs to YXC's standard SMD crystal lineup, specifically optimized for low-cost, high-volume applications. It serves as a fundamental timing reference for digital systems. The model designation indicates specific electrical parameters and packaging style within the broader YXC product family.

Crystals Replacement Considerations

Compatible substitutes include YXC XKYED8K5II-112YXC-32.768K, which shares similar electrical characteristics but may differ in load capacitance or package specifics. Verify pin compatibility and parameter equivalence before substitution.
