XLFBB20W

LED Indication - Discrete Overview

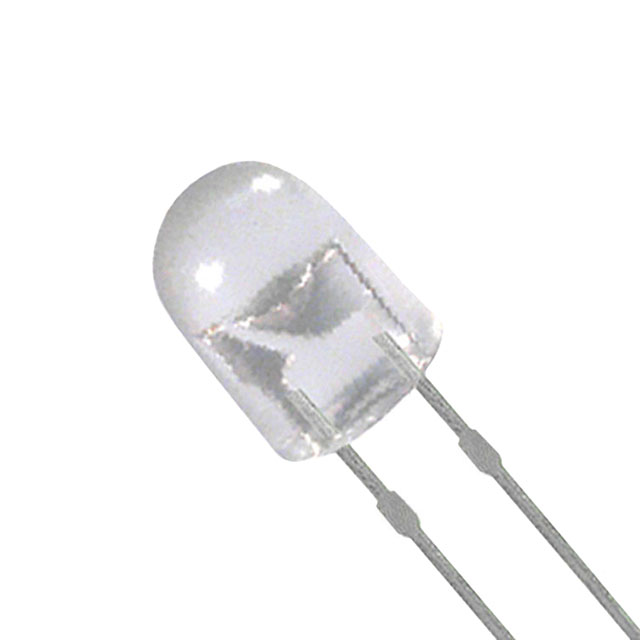

The SunLED XLFBB20W is a blue light-emitting diode featuring a water-clear oval lens with a 5mm diameter. It utilizes through-hole mounting technology and operates at a peak wavelength of 465nm. The component provides a minimum luminous intensity of 1600 mcd. Its optical characteristics include a viewing angle of 70 degrees horizontally and 30 degrees vertically, ensuring effective directional illumination for indicator applications.

LED Indication - Discrete Feature Summary

• High-brightness blue emission optimized for visual indication
• Water-clear oval lens design for consistent light transmission
• Through-hole radial package construction for standard PCB integration

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision to confirm electrical limits and thermal handling requirements. Ensure the procurement documentation explicitly states compliance with RoHS standards as indicated in public listings. Cross-reference the manufacturer's official ordering codes to avoid confusion with similar series components.

LED Indication - Discrete Selection Notes

Select this component when high visibility of blue indication is required within a through-hole assembly process. The 70-degree horizontal viewing angle supports broad visibility needs. Confirm that the mechanical footprint matches the target printed circuit board layout before finalizing the bill of materials.

LED Indication - Discrete Part Context

This part belongs to the SunLED XLFBB20 series, which focuses on through-hole LED solutions. SunLED manufactures optoelectronic components for industrial and consumer electronics. The XLFBB20W specifically addresses the need for reliable blue indication in standard radial packages.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing footprints and forward voltage requirements if considering alternative manufacturers.
