XLM2DG11W

LED Indication - Discrete Overview

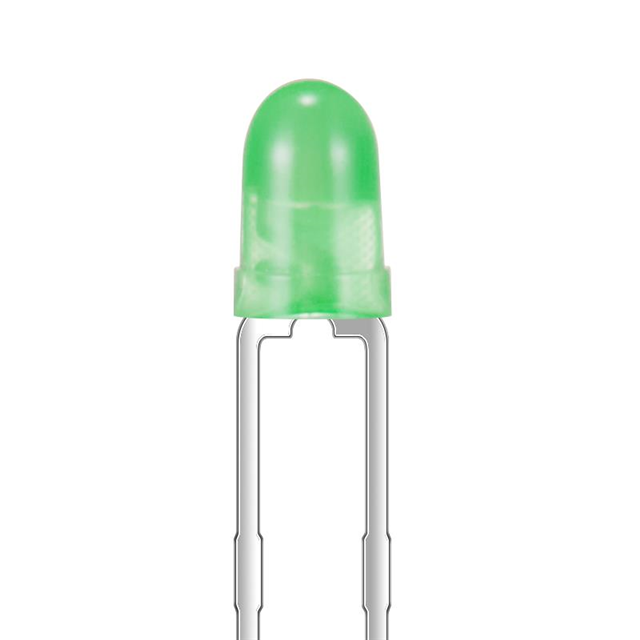

The XLM2DG11W is a discrete green light-emitting diode manufactured by SunLED. It utilizes a T-1 (3mm) through-hole package with a round lens featuring a domed top and clear transparency. The component operates with a typical forward voltage of 3.2V and delivers a millicandela rating of 13990mcd. This LED is designed for standard panel mounting applications requiring high visibility in a compact form factor.

LED Indication - Discrete Feature Summary

• High luminous intensity output suitable for clear visual indication
• T-1 cylindrical package design compatible with standard PCB drilling

LED Indication - Discrete Applications

• Panel-mounted status indicators
• Control board visual signaling
• Equipment power state display

LED Indication - Discrete Procurement Notes

Verify the specific binning requirements for forward voltage and luminous intensity prior to ordering, as manufacturing tolerances may vary. Confirm that the 3mm T-1 package dimensions align with the mechanical constraints of the target enclosure. Ensure compatibility with the intended drive circuit regarding the 3.2V forward voltage specification to prevent overcurrent conditions.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity green indicator is required in a traditional through-hole format. The 3mm size offers a balance between visibility and space efficiency compared to larger T-5 variants. Consider the domed lens style for wider viewing angles if the indicator needs to be visible from oblique positions rather than direct frontal viewing only.

LED Indication - Discrete Part Context

SunLED produces a broad range of optoelectronic components, including SMD LEDs, LED lamps, and displays. The XLM2DG11W belongs to their discrete LED lamp category, representing a legacy through-hole solution alongside their modern surface-mount offerings. This part supports designs transitioning from or maintaining traditional assembly methods.

LED Indication - Discrete Replacement Considerations

Cross-reference other 3mm T-1 green LEDs from manufacturers such as Kingbright or Lite-On. Verify that substitute parts match the 3.2V forward voltage and physical lead spacing to ensure mechanical fit without modification.
