XLM2DG14W

LED Indication - Discrete Overview

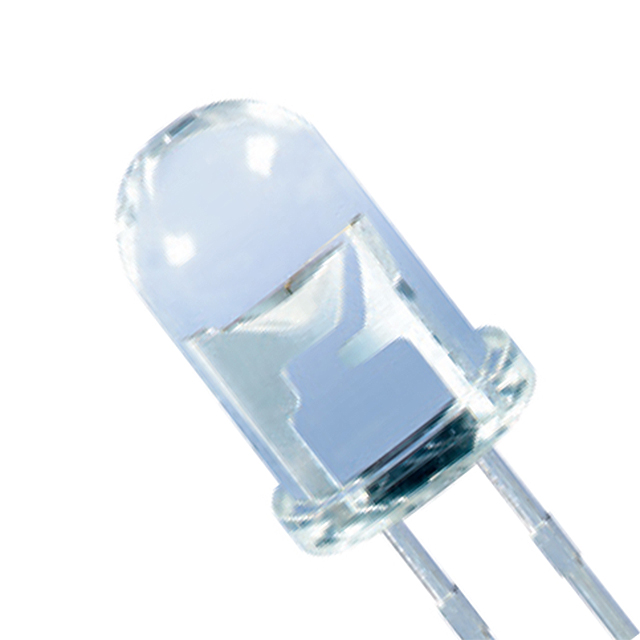

The XLM2DG14W is a single-color green light-emitting diode manufactured by SunLED, designed for discrete indication applications. It features an emerald green emission with a peak wavelength of 520nm to 525nm and operates at a typical forward voltage of 3.2V under a test current of 20mA. The component delivers a luminous intensity of approximately 11.99cd (11990mcd) and utilizes a water-clear lens. It is housed in a standard radial package suitable for through-hole mounting, with an operating temperature range spanning from -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Provides high-intensity emerald green illumination for clear visual status signaling
• Utilizes a water-clear lens to maximize light transmission efficiency
• Engineered for low power consumption within compact optoelectronic designs

LED Indication - Discrete Applications

• Panel status indicators on electronic equipment
• Power supply operational state signaling
• Compact consumer device front panels

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when sourcing, as specifications may be subject to change without notice. Confirm that the supplier provides components compliant with RoHS standards and appropriate moisture sensitivity level handling procedures during storage and assembly. Ensure the radial lead configuration matches the target PCB footprint requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a bright green indication is required for through-hole assembly processes. The 3.2V forward voltage drop necessitates appropriate current-limiting resistor calculations compared to lower-voltage alternatives. Consider the 11.99cd intensity rating against ambient lighting conditions to ensure adequate visibility for end-users in the intended application environment.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED portfolio, specifically categorized under indication devices. It represents a standard radial leaded variant distinct from the manufacturer's surface-mount offerings like the XZM series. The product line focuses on providing reliable optical performance for general-purpose electronic instrumentation and control panel applications requiring durable visual feedback.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 520-525nm green wavelength, 3.2V forward voltage, and radial package dimensions. Verify that alternative components maintain similar luminous intensity levels and thermal characteristics to ensure consistent performance in existing circuit designs without requiring schematic modifications.
