XLUG01D

LED Indication - Discrete Overview

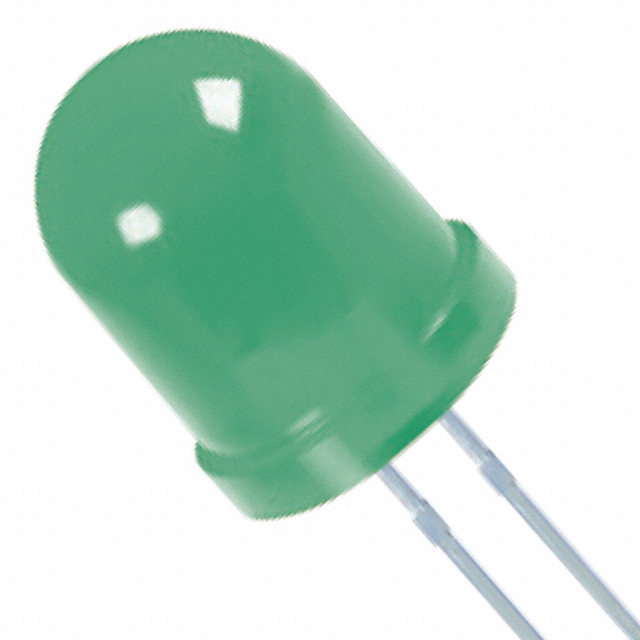

The XLUG01D is a single-color green light-emitting diode manufactured by SunLED, designed for through-hole radial mounting. It features a 10mm diameter lens with a diffused finish and a dome style, emitting at a peak wavelength of 574nm. The component operates with a typical forward voltage of 2.1V at a test current of 20mA, producing a luminous intensity of 98mcd. With a narrow viewing angle of 30 degrees, it is optimized for focused visual indication applications requiring high brightness in the green spectrum.

LED Indication - Discrete Feature Summary

• Radial through-hole package construction for standard PCB insertion
• Diffused lens design providing a wide, uniform light distribution pattern
• High luminous intensity output suitable for clear visibility in various lighting conditions

LED Indication - Discrete Applications

• Panel status indicators for electronic equipment
• Power supply operational signaling
• Control board activity monitoring

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure compatibility with required forward voltage and luminous intensity specifications. Confirm that the radial lead spacing matches the target printed circuit board layout dimensions prior to procurement to prevent assembly issues.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity green indicator is required for through-hole assembly. The 10mm size offers superior visibility compared to smaller surface-mount alternatives. Ensure the driving circuit accounts for the 2.1V forward voltage drop and limits current to the specified 20mA test level to maintain optimal performance and longevity.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED indicator series, characterized by robust radial packaging and standardized electrical parameters. It serves as a fundamental optical component for visual feedback in industrial and consumer electronics, distinct from multi-color or surface-mount variants within the broader product catalog.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
