XLVG12D5V

LED Indication - Discrete Overview

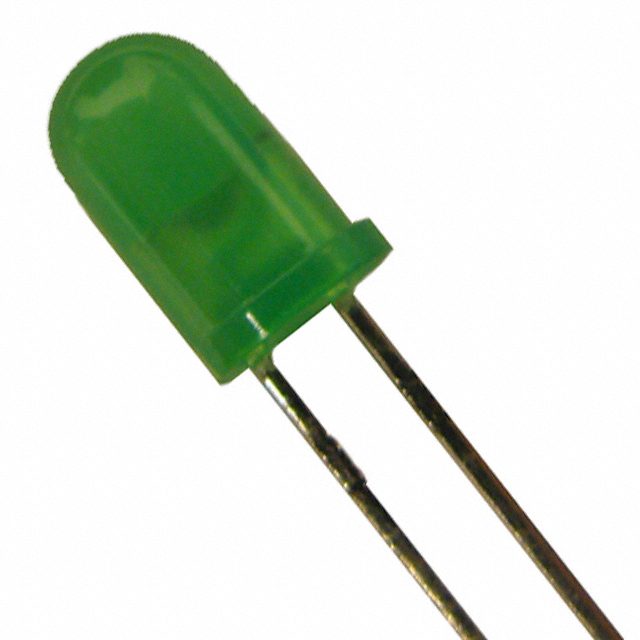

The XLVG12D5V is a green diffused T-1 3/4 (5mm) through-hole LED manufactured by SunLED. It operates at a forward voltage of 5V with a test current of 12mA, emitting light at a dominant wavelength of 570nm. The component features a radial package and bulk packaging configuration. Designed for discrete indication applications, it provides standard lens transparency suitable for visual status signaling in electronic circuits.

LED Indication - Discrete Feature Summary

• Green diffused lens design for broad visibility
• Radial through-hole mounting configuration
• Standard discrete LED indication functionality

LED Indication - Discrete Applications

• Discrete panel indicator lights
• Electronic device status signaling
• Control board visual feedback systems

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from authorized distributors to confirm electrical tolerances and thermal characteristics. Ensure compliance with RoHS standards as indicated in product listings. Cross-reference the part number XLVG12D5V with official SunLED documentation to validate availability and manufacturing status before procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a 5mm radial LED with green diffused output. Consider the 5V forward voltage requirement when designing drive circuits. Evaluate space constraints for T-1 3/4 packages and ensure compatibility with through-hole assembly processes for reliable integration.

LED Indication - Discrete Part Context

This component belongs to SunLED's discrete LED indication series, focusing on standard through-hole technologies. It serves as a visual signaling element within broader optoelectronic product lines, supporting industrial and consumer electronics designs that require reliable, low-power illumination indicators.

LED Indication - Discrete Replacement Considerations

Consult official SunLED substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameters such as forward voltage and luminous intensity when considering cross-brand replacements to ensure circuit performance consistency.
