XLVG61D

LED Indication - Discrete Overview

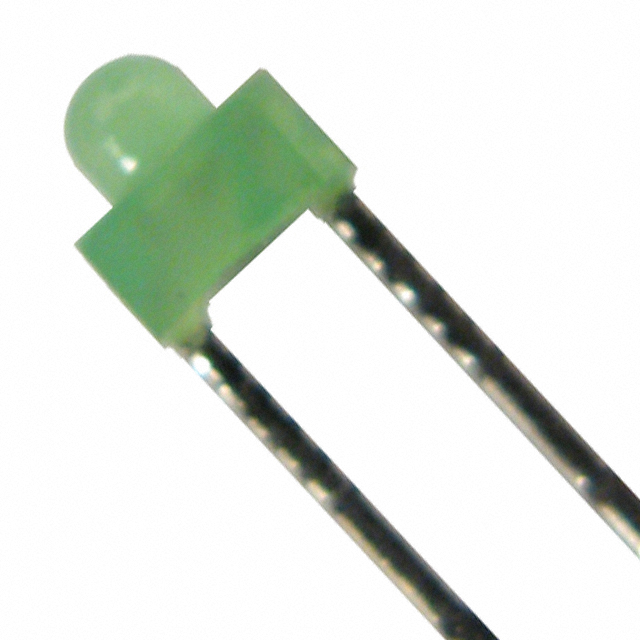

The XLVG61D is a 1.8mm radial through-hole green LED manufactured by SunLED. It features a diffused lens with a domed top and emits light at a wavelength of 570nm. The typical forward voltage is 2.1V, measured at a test current of 20mA. The component provides a millicandela rating of 79mcd. It is designed for surface mounting applications requiring discrete indication.

LED Indication - Discrete Feature Summary

• Diffused lens design for uniform light distribution
• Radial lead configuration for through-hole assembly
• Green emission optimized for visibility

LED Indication - Discrete Applications

• Discrete status indication on electronic panels
• Power supply status monitoring
• Embedded device signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required lens transparency and color specifications. Confirm that the radial package style matches the PCB footprint requirements. Check the manufacturer's datasheet for absolute maximum ratings to prevent thermal damage during soldering processes.

LED Indication - Discrete Selection Notes

Select this component when a small form factor 1.8mm LED is required for high-visibility green indication. Ensure the circuit design accommodates the 2.1V forward voltage drop. Consider the diffused lens property if glare reduction is necessary for the application environment.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED indicator line, specifically within the 1.8mm solid-state lamp category. It serves as a compact solution for space-constrained designs where standard 3mm or 5mm LEDs do not fit. The product line emphasizes reliability and consistent optical performance.

LED Indication - Discrete Replacement Considerations

Consult SunLED representatives for special applications. Verify electrical parameters such as forward voltage and luminous intensity against potential substitutes to ensure functional equivalence in the target circuit.
