XN0F26300L

Overview

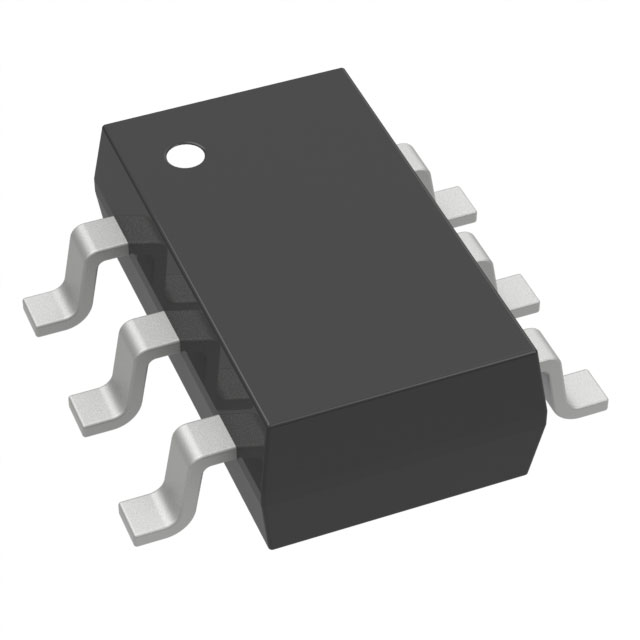

The Panasonic XN0F263 is a composite transistor featuring two silicon NPN epitaxial planar elements integrated into a single SC-74 Mini6-G1 package. It incorporates collector-coupled transistors with built-in input resistors to reduce mounting area and assembly costs. Key electrical characteristics include a maximum collector-emitter voltage of 15 V, a continuous collector current of 600 mA, and a total power dissipation of 300 mW at 25°C. The device exhibits a low collector-emitter saturation voltage of 50 mV at IC = 50 mA and IB = 2.5 mA, alongside a forward current transfer ratio (hFE) ranging from 100 to 600.

Feature Summary

• Dual-element integration within a single package for space-saving design
• Built-in input resistors simplify circuit configuration
• Low collector-emitter saturation voltage for efficient switching

Applications

• Muting circuits in audio equipment
• General electronic equipment
• Office equipment
• Communications equipment

Procurement Notes

Verify the current lifecycle status on the official Panasonic semiconductor website before procurement, as this component may be subject to maintenance or discontinuation plans. Confirm that the specific package type matches your PCB footprint requirements. Ensure compliance with RoHS directives if applicable to your manufacturing standards. Request the latest Product Standards documentation during the final design stage to guarantee specification accuracy.

Selection Notes

Select this component when a compact solution for dual NPN switching with integrated base resistance is required. The SC-74 Mini6-G1 package is suitable for applications with strict space constraints. Consider the 15 V collector-emitter voltage limit and 600 mA current rating to ensure operation remains within safe limits. Verify thermal management capabilities given the 300 mW total power dissipation rating.

Part Context

This part belongs to the Composite Transistors category from Panasonic Electronic Components. It utilizes silicon NPN epitaxial planar technology designed specifically for muting applications. The internal connection diagram shows two distinct transistors sharing a common collector terminal, with individual bases and emitters accessible through the six-pin package.

Replacement Considerations

Consult the official Panasonic replacement list for verified substitutes. Cross-reference pinouts and electrical parameters carefully when considering alternatives from other manufacturers to ensure compatibility with existing circuit designs.
