XO3080-132

Overview

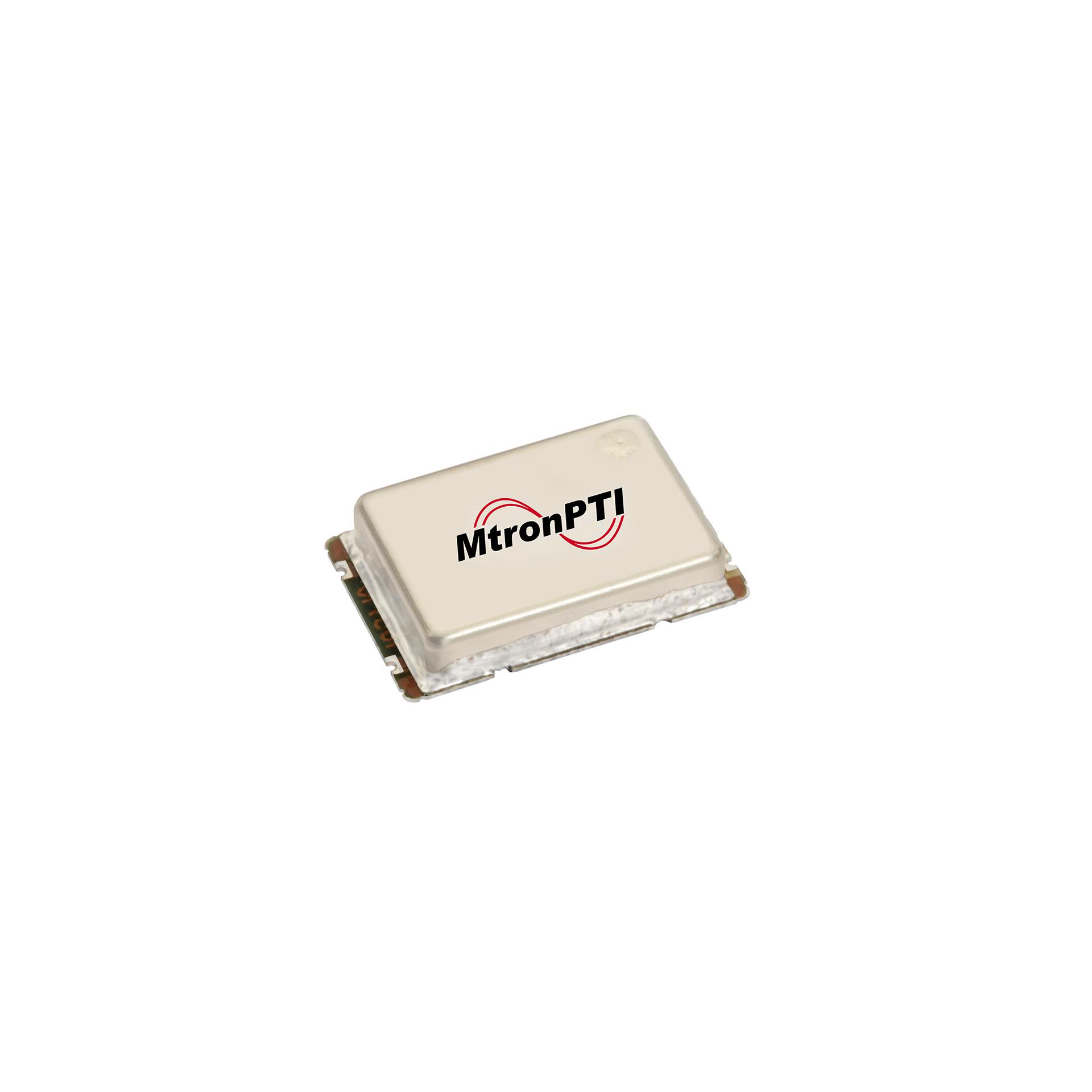

The MtronPTI XO3080-132 is a temperature-compensated crystal oscillator (TCXO) designed for high-frequency stability applications. It operates at a nominal frequency of 100 MHz with a typical frequency stability of ±1 ppm. The device supports dual voltage inputs, compatible with both 3.3V and 5.0V power supplies. It features an HCMOS or sine wave output configuration, providing flexibility for various digital and analog circuit interfaces. The component utilizes a crystal base resonator and is engineered to maintain performance across specified operating temperature ranges.

Feature Summary

• Temperature compensation ensures stable frequency output under varying thermal conditions
• Dual voltage compatibility allows integration into 3.3V and 5.0V system architectures
• Flexible output options support both HCMOS logic levels and sine wave signals

Applications

• Telecommunications equipment requiring precise clock synchronization
• Test and measurement instruments needing stable reference frequencies
• Data communication systems utilizing high-speed serial interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact frequency tolerance, temperature range, and output type specifications. Ensure the selected variant matches the required supply voltage and load conditions for the target application. Cross-reference part numbers with authorized distributors to confirm current product status and availability.

Selection Notes

Select this component when high frequency stability is critical for system timing accuracy. Consider the dual voltage capability if the design requires flexibility between 3.3V and 5.0V rails. Evaluate the output waveform requirements to determine if HCMOS or sine wave signaling best suits the downstream circuitry. Confirm that the operating temperature range aligns with the environmental conditions of the intended deployment.

Part Context

The XO3080 series represents MtronPTI's line of precision oscillators. This model family includes variants such as XO3080-139R and XO3080-119, offering different frequency and temperature configurations. The series is characterized by its compact form factor and robust performance in demanding electronic environments.

Replacement Considerations

Consult official MtronPTI substitution guides for direct replacements. Verify pinout compatibility and electrical parameters before integrating alternative components.
