XO3080-147

Overview

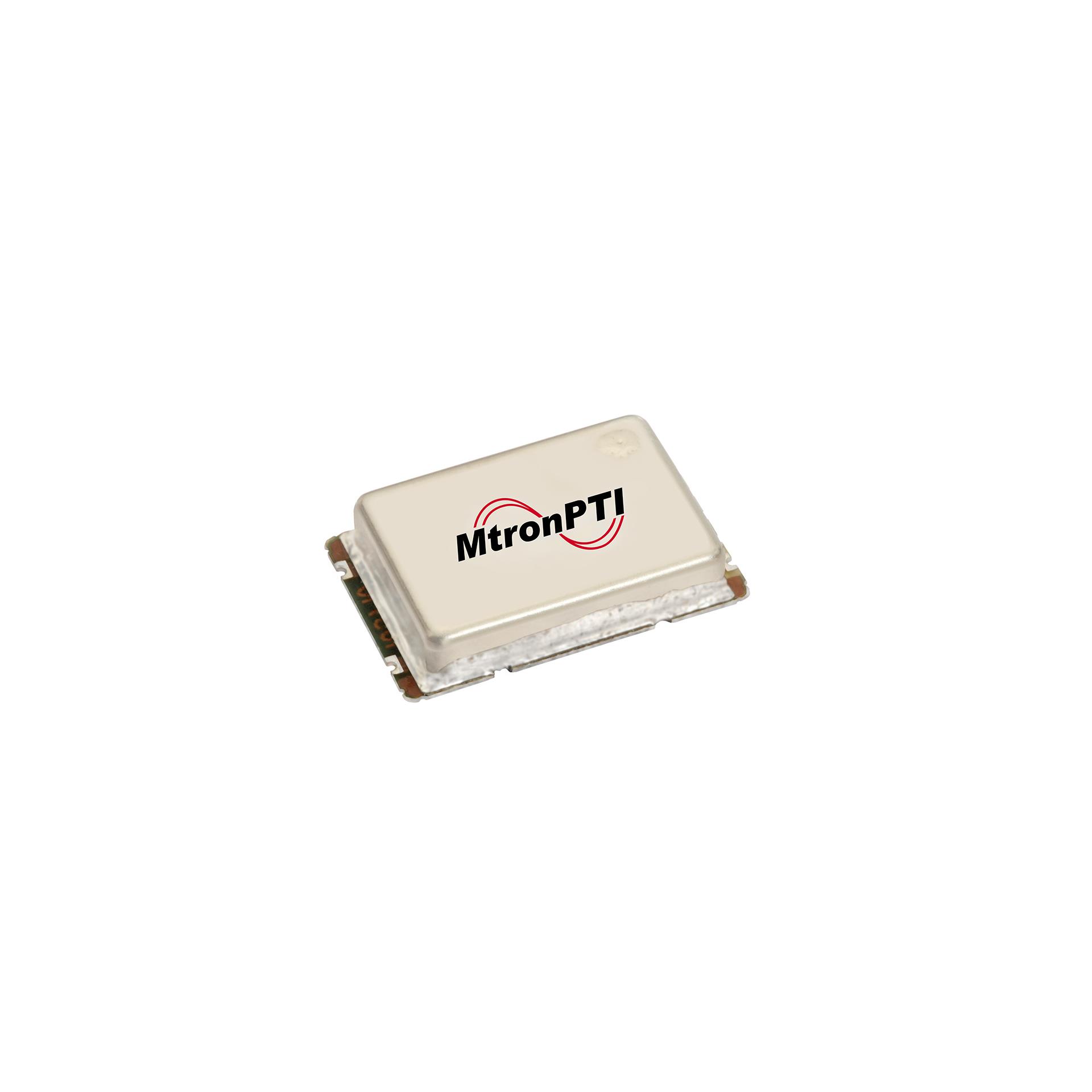

The MtronPTI XO3080-147 is a Temperature Compensated Crystal Oscillator (TCXO) featuring a sine wave output. It operates at a nominal frequency of 50 MHz and requires a single 5V supply voltage. The device utilizes a 7-SMD, No Lead surface-mount package with dimensions of 1.8x8 inches. It provides stable clock signals for digital systems requiring low phase noise.

Feature Summary

• Generates a sine wave output signal
• Incorporates temperature compensation for stability
• Supports surface-mount assembly

Applications

• Communications equipment
• Broadband fixed line access
• Enterprise systems
• Data center & enterprise computing
• Personal electronics

Procurement Notes

Verify the specific operating temperature range and frequency tolerance requirements against the official MtronPTI datasheet before procurement. Confirm that the 7-SMD, No Lead package footprint matches the target PCB design. Ensure the 5V supply voltage aligns with the system power architecture to guarantee proper oscillator operation.

Selection Notes

Select this component when a sine wave output is required for downstream circuitry rather than digital logic levels. The 50 MHz frequency suits standard clocking needs in networking hardware. Consider the physical size constraints of the 1.8x8 inch package during layout planning to ensure adequate clearance and thermal management.

Part Context

This part belongs to the XO3080 series of TCXOs from MtronPTI. The series offers various frequency options and package configurations. The XO3080-147 specifically denotes the 50 MHz variant with sine output, designed for applications demanding reliable timing references in compact electronic assemblies.

Replacement Considerations

Consult the official MtronPTI documentation for direct cross-references or updated series replacements. Verify pinout compatibility and electrical specifications if substituting with other manufacturers' 50 MHz sine wave TCXOs in the same form factor.
