XO9070-003R

Overview

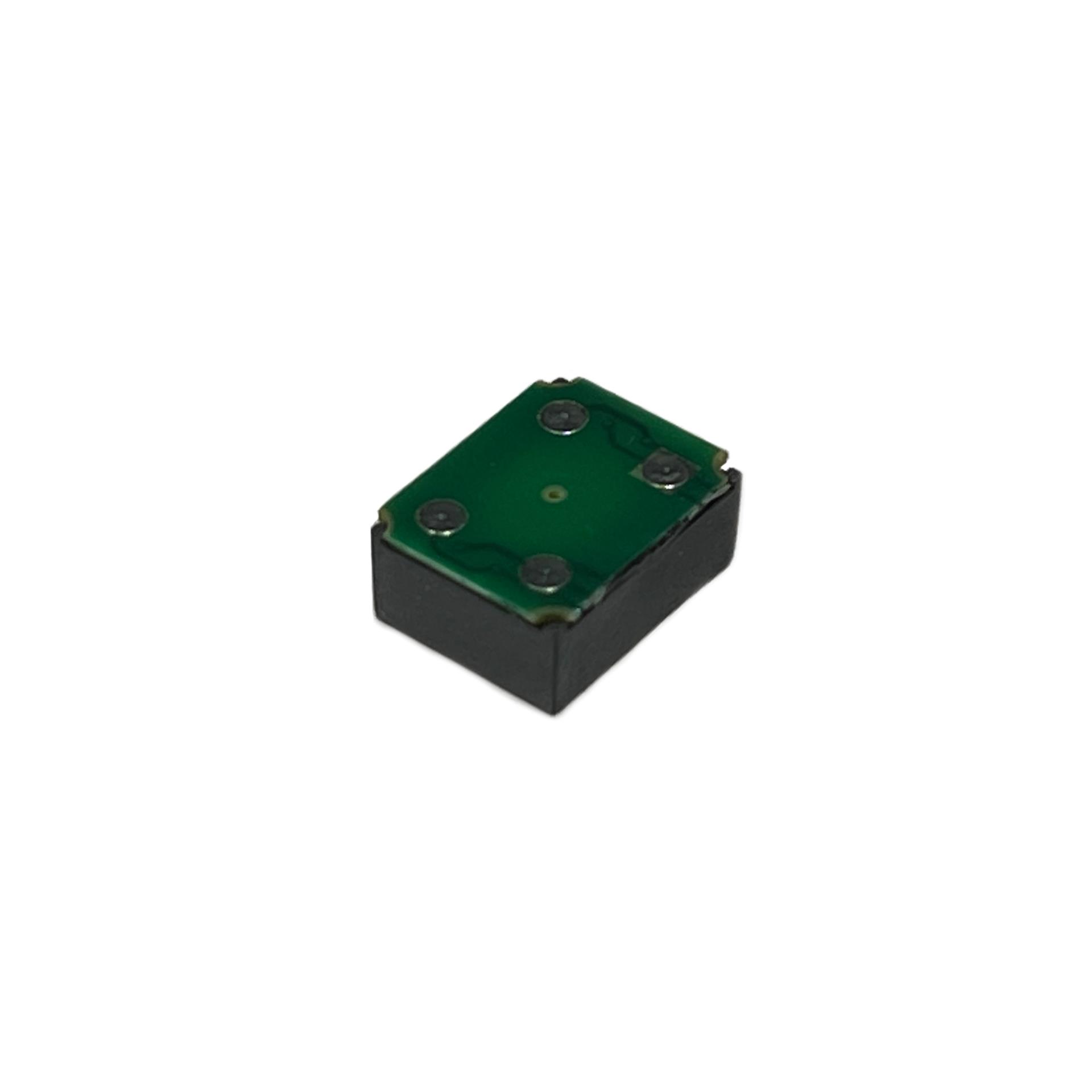

The XO9070-003R is a precision CMOS oscillator manufactured by MtronPTI. It operates at a nominal frequency of 10 MHz with a stability of ±100 ppb. The device requires a 3.3V supply voltage and utilizes a CMOS output interface. This component is designed for high-performance timing applications requiring low jitter.

Feature Summary

• Provides ultra-low jitter performance suitable for sensitive data timing applications
• Features stable frequency control with ±100 ppb stability specification
• Operates on a standard 3.3V power supply rail

Applications

• High-speed digital communication systems
• Precision test and measurement equipment
• Data acquisition systems requiring accurate clocking

Procurement Notes

Verify the specific part number against official MtronPTI documentation to ensure compatibility with system requirements. Confirm that the 3.3V supply voltage aligns with your design constraints. Check for RoHS compliance status if environmental regulations apply to your project. Ensure the CMOS output logic levels match the receiving circuitry input specifications.

Selection Notes

Select this component when ultra-low jitter is critical for signal integrity. The ±100 ppb stability ensures precise timing over operating conditions. Consider the 3.3V supply requirement during power budget planning. Verify that the 10 MHz frequency meets the system clock needs without additional dividers or multipliers.

Part Context

This oscillator belongs to the XO9070 series, which focuses on high-performance crystal oscillators. MtronPTI designs these components for applications demanding superior phase noise and jitter characteristics compared to standard crystal oscillators.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult MtronPTI directly for equivalent recommendations based on specific electrical and mechanical requirements.
