XR25M00000S420

Crystals Overview

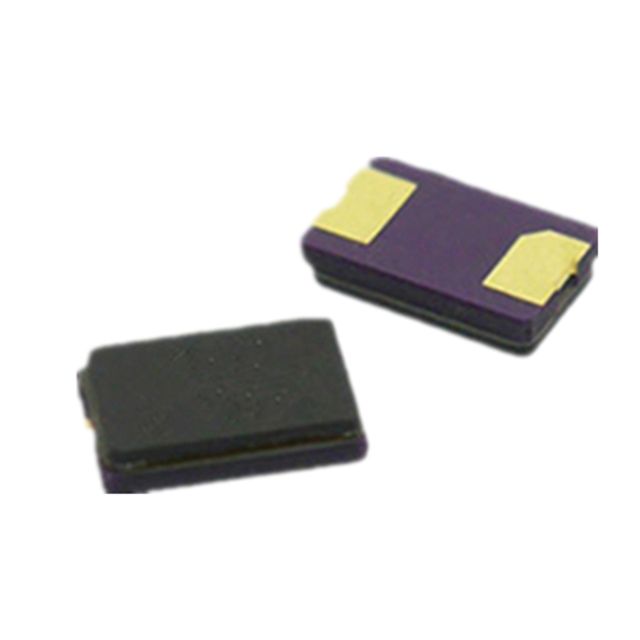

The XR25M00000S420 is a passive crystal oscillator manufactured by TGS, operating at a fundamental frequency of 25 MHz. It features a load capacitance of 20 pF and an equivalent series resistance (ESR) of 50 Ohms. The component exhibits a frequency stability of ±30 ppm. Designed for surface-mount applications, it utilizes a 2-SMD, No Lead package configuration. The device supports a wide operating temperature range from -40°C to +85°C, ensuring reliable performance in various electronic environments.

Crystals Feature Summary

• Passive crystal resonator with 20 pF load capacitance
• Compact 2-SMD, No Lead surface-mount package
• Wide industrial temperature range operation

Crystals Applications

• General-purpose clock signal generation
• Microcontroller system timing references
• Digital communication interface synchronization

Crystals Procurement Notes

Verify the specific load capacitance requirement of 20 pF against the target circuit design to ensure accurate frequency oscillation. Confirm that the PCB footprint matches the 2-SMD, No Lead package dimensions provided in the official datasheet. Ensure the application environment remains within the specified -40°C to +85°C operational temperature range for guaranteed stability.

Crystals Selection Notes

Select this component when a standard 25 MHz reference with ±30 ppm stability is required. The 20 pF load capacitance must align with the oscillator circuit's external capacitors. Consider the 50 Ohm ESR for drive level limitations. This passive type requires an external oscillator circuit, unlike active alternatives.

Crystals Part Context

This part belongs to the TGS crystal component family, specifically designed for surface-mount technology. It serves as a fundamental frequency reference element. The model designation indicates a 25 MHz output with specific electrical characteristics tailored for standard digital logic interfaces and timing applications.

Crystals Replacement Considerations

Direct substitutes must match the 25 MHz frequency, 20 pF load capacitance, and 2-SMD No Lead package. Verify that alternative components maintain the same ±30 ppm stability and -40°C to +85°C temperature range. Check ESR compatibility to prevent overdriving the crystal.
