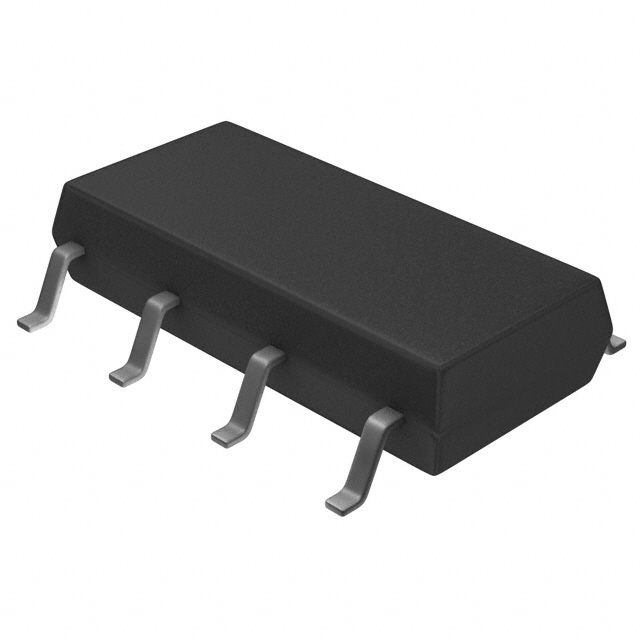

XR31235EDTR

Drivers, Receivers, Transceivers Overview

The XR31235EDTR is a high-speed CAN transceiver manufactured by MaxLinear, Inc., designed for automotive and industrial applications. It operates on a single 3.3V supply with a maximum voltage of 3.6V and supports data rates up to 1 Mb/s. The device features an NSOIC-8 package and includes integrated fault tolerance capable of withstanding ±36V on the bus lines. It offers low quiescent current consumption of 200 uA and provides ESD protection rated at 16 kV. The component functions within a temperature range of -40°C to +125°C and utilizes an autobaud low-bias mode for reliable communication.

Drivers, Receivers, Transceivers Feature Summary

• Supports high-speed CAN communication with data rates up to 1 Mb/s
• Provides robust fault tolerance with ±36V capability on the bus lines
• Features low power consumption with 200 uA operating current
• Includes integrated ESD protection rated at 16 kV

Drivers, Receivers, Transceivers Applications

• Automotive electronic control units (ECUs)
• Industrial automation systems requiring CAN bus connectivity
• Smart grid and metering infrastructure
• Medical equipment with CAN interface requirements

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific suffix EDTR indicates reel packaging when ordering. Confirm compatibility with existing PCB footprints for the NSOIC-8 package. Ensure supply chain sources provide original manufacturer documentation to guarantee authenticity. Check for RoHS compliance status if required by project specifications. Validate that the supplier can meet the specified production lead times.

Drivers, Receivers, Transceivers Selection Notes

Select this component when a 3.3V powered CAN transceiver with high fault tolerance is required. Compare against similar models like the XR31234EDTR if sleep mode functionality is preferred over autobaud low-bias mode. Consider the NSOIC-8 package size constraints during layout design. Verify thermal performance requirements given the 540 mW power dissipation rating.

Drivers, Receivers, Transceivers Part Context

The XR31235EDTR belongs to the XR3123x series of CAN transceivers from MaxLinear. This series includes variants such as the XR31233, XR31234, and XR31235, each offering different operational modes. The XR31235 specifically targets applications needing autobaud low-bias mode for enhanced noise immunity in electrically noisy environments.

Drivers, Receivers, Transceivers Replacement Considerations

The XR31234EDTR is a related variant offering sleep mode instead of autobaud low-bias mode. Both share similar electrical characteristics and package types. Verify functional differences before substitution to ensure compatibility with system requirements.
