XRCGA25M000FBA1BR0

Crystals Overview

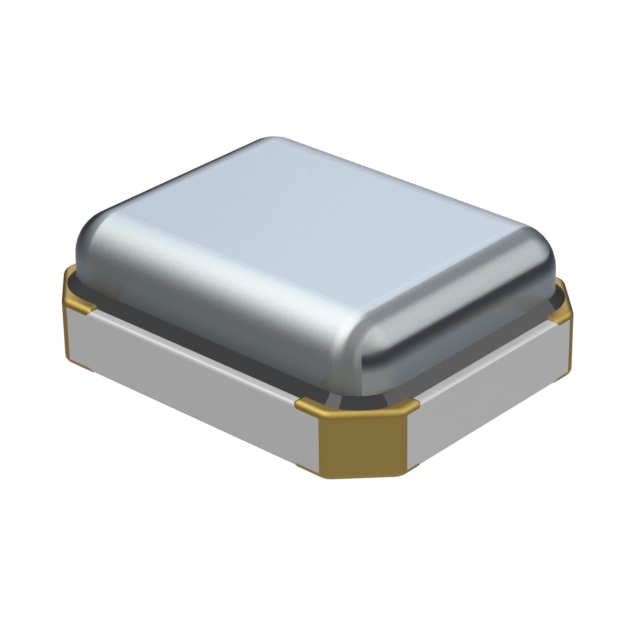

The XRCGA25M000FBA1BR0 is a surface-mount crystal unit manufactured by Murata Electronics, designed for precision timing applications. It operates at a fundamental frequency of 25 MHz with an initial frequency tolerance of ±15 ppm and a total stability of ±15 ppm. The component features a load capacitance of 8 pF and an equivalent series resistance (ESR) of 100 Ohms. It utilizes a compact 4-SMD, no-lead package measuring 2.0 mm in length, 1.6 mm in width, and 0.65 mm in height. The device supports a maximum drive level of 300 uW and is qualified to AEC-Q200 standards, ensuring reliability for automotive environments across an operating temperature range of -40°C to +125°C.

Crystals Feature Summary

• AEC-Q200 qualified for automotive grade reliability
• High frequency stability with ±15 ppm tolerance
• Compact 2.0x1.6mm SMD footprint
• Wide operating temperature range from -40°C to +125°C

Crystals Applications

• Automotive infotainment systems
• Engine control units (ECU)
• Telematics modules
• Advanced driver assistance systems (ADAS)

Crystals Procurement Notes

Verify the specific suffix configuration against the official Murata datasheet to ensure compatibility with target circuit requirements. Confirm that the AEC-Q200 qualification status aligns with the intended automotive application standards. Check for any recent product change notifications or lifecycle updates directly from the manufacturer before finalizing procurement plans.

Crystals Selection Notes

Select this component when a 25 MHz reference signal is required with tight frequency stability in space-constrained designs. The 8 pF load capacitance must match the oscillator circuit design specifications. Ensure the PCB layout accommodates the 2.0x1.6mm package dimensions and thermal requirements for high-temperature operation up to 125°C.

Crystals Part Context

This part belongs to the XRCGA series of ultra-small crystal units from Murata Electronics. It shares the same physical dimensions as other variants in the family but differs in frequency tolerance and stability specifications. The series is engineered for high-volume manufacturing processes and offers consistent performance across wide industrial and automotive temperature ranges.

Crystals Replacement Considerations

Direct substitutes include XRCGE25M000FXA1BR0, which offers similar dimensions but different tolerance specifications. Other compatible options within the same package size may include variants from the XRCGB series, provided their electrical parameters such as ESR and load capacitance are verified against the original design requirements.
