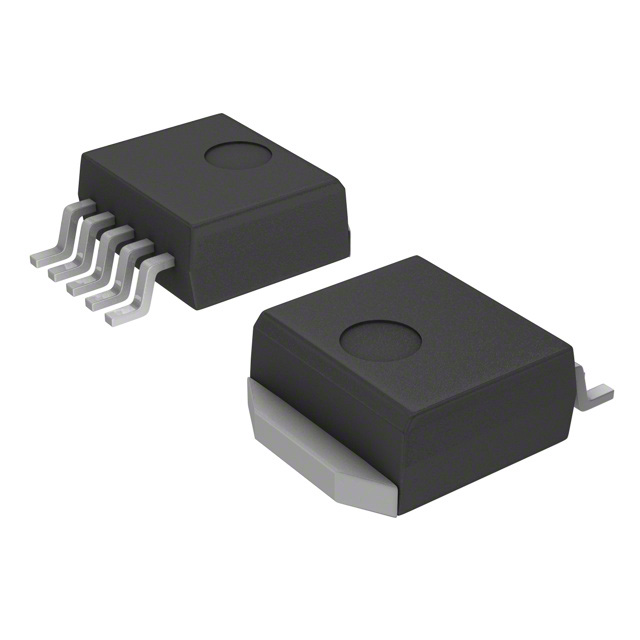

XRP29302AETBTR-L

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The XRP29302AETBTR-L is a 3A high-current, low-dropout linear voltage regulator manufactured by MaxLinear. It features an adjustable output voltage range and operates with an input voltage up to 16V. The device provides comprehensive fault protection against over-current, reverse battery conditions, and positive/negative voltage transients. Designed for applications requiring fast transient response and low dropout characteristics, it ensures stable regulation under varying load conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Provides 3A output current capability with low dropout voltage performance
• Includes full fault protection against over-current, reverse battery, and voltage transients
• Designed for low voltage applications requiring fast transient response

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Low voltage power supply systems
• Applications requiring fast transient response
• Systems needing protection against reverse battery and voltage transients

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific package type and pin configuration before procurement, as variations exist within the SPX/XRP series. Confirm that the adjustable output version meets your voltage requirements. Ensure compatibility with thermal management solutions given the 3A current rating. Check for RoHS compliance status if required by your manufacturing standards.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a 3A output current is necessary with low dropout performance. Consider the adjustable output feature for flexible voltage setting. Evaluate thermal dissipation requirements due to the high current capacity. Ensure the input voltage range aligns with your system's power source capabilities.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the SPX29300/01/02/03 family of 3A precision regulators from MaxLinear. These devices are engineered for low dropout operation and fast transient response. The family includes fixed and adjustable output variants, sharing common fault protection features and high accuracy specifications for demanding power management applications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

The XRP29302ETBTR-L is listed as a similar part number in public documentation. Verify pinout compatibility and electrical parameters before substitution. Other 3A LDOs may require circuit redesign due to differences in dropout voltage or protection features.
