XSC103A

Overview

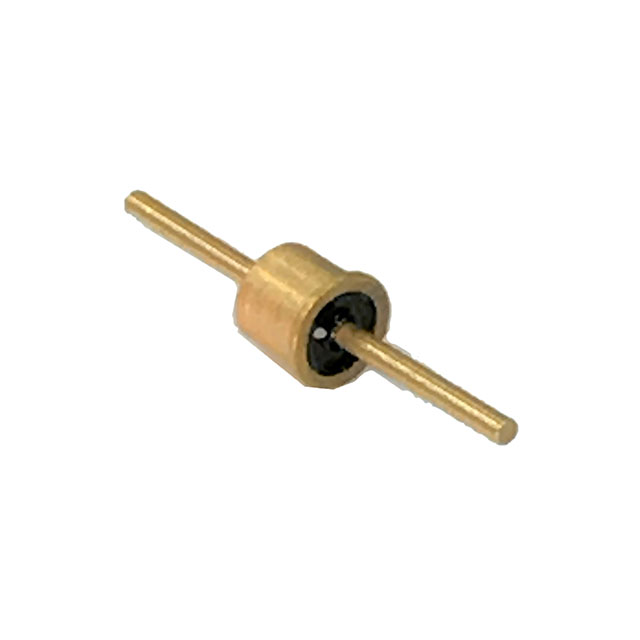

The XSC103A is a feed-through capacitor manufactured by EMI Filter Company. It features an axial leaded package with a bushing configuration, designed for solder-in mounting. The component has a capacitance of 10000 pF and a voltage rating of 50V DC. It is classified as a VA type EMI filter intended for electromagnetic interference suppression.

Feature Summary

• Feed-through capacitor design for effective noise attenuation
• Axial leaded construction with bushing for panel or bulkhead mounting
• Solder-in termination style for secure integration

Applications

• EMI suppression in electronic circuits
• Bulkhead mounted low pass filtering
• Microwave communications industry applications

Procurement Notes

Verify the manufacturer designation as EMI Filter Company against official datasheets. Confirm the axial bushing package and 50V rating match system requirements. Ensure the solder-in mounting style is compatible with assembly processes. Cross-reference the 10000 pF capacitance value with circuit specifications to validate performance needs.

Selection Notes

Select this component when a feed-through topology is required for high-frequency noise reduction. The axial bushing form factor suits bulkhead installations where space constraints favor through-panel mounting. Verify that the 50V DC rating meets the operating voltage conditions of the target application line.

Part Context

This part belongs to the category of electromagnetic interference filters produced by EMI Filter Company. The manufacturer specializes in bulkhead-mounted low-pass filters for the microwave communications sector. The product line includes threaded, solder-in, and press-in styles utilizing patented manufacturing processes.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative components from other manufacturers.
