XSMDK23MB

LED Indication - Discrete Overview

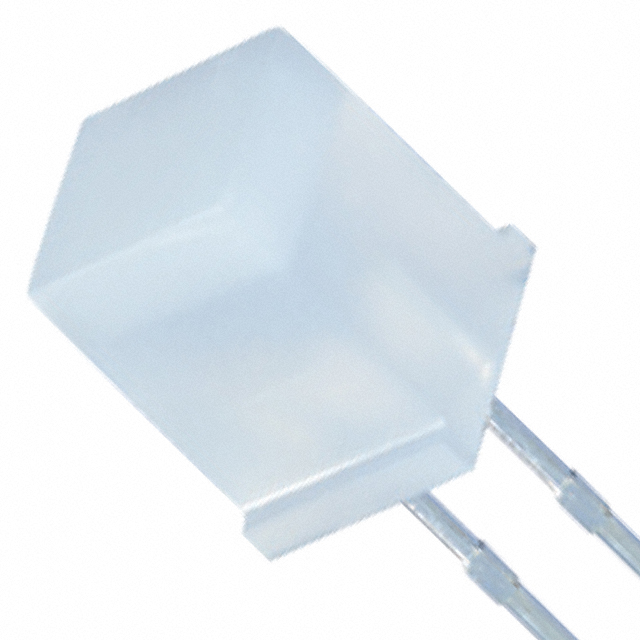

The XSMDK23MB is a red diffused LED indicator from SunLED's Ice Cube series, designed for through-hole mounting. It features a square lens with a flat top and radial leads. Key electrical parameters include a typical forward voltage of 1.95V at a test current of 20mA. The component emits light with a millicandela rating of 29mcd and offers a viewing angle of 110 degrees. Physical dimensions are 5.00mm in length and width, with a maximum height of 7.20mm.

LED Indication - Discrete Feature Summary

• Diffused red lens provides wide-angle visibility
• Square form factor with flat top design
• Radial lead configuration for standard PCB insertion

LED Indication - Discrete Applications

• Panel status indication
• Power supply signaling
• Control board activity monitoring

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm exact binning classifications for forward voltage and luminous intensity. Ensure that the radial lead spacing matches the target printed circuit board footprint requirements before finalizing procurement orders to prevent assembly issues.

LED Indication - Discrete Selection Notes

Select this component when a low forward voltage drop is required for red indicators. The 110-degree viewing angle suits applications needing broad visual awareness. Confirm compatibility with standard through-hole soldering profiles and ensure the 5mm square package fits within the designated enclosure constraints.

LED Indication - Discrete Part Context

This part belongs to SunLED's Ice Cube series, which specializes in compact, high-visibility discrete LEDs. The XSMDK23 variant specifically denotes the red color option within this family, sharing the same physical housing and lead structure as other colors like white or green variants.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 5mm square radial LEDs with similar forward voltage characteristics. Verify that alternative parts maintain the 110-degree viewing angle and comparable mechanical height limits to ensure fitment.
