XSUG18D

LED Indication - Discrete Overview

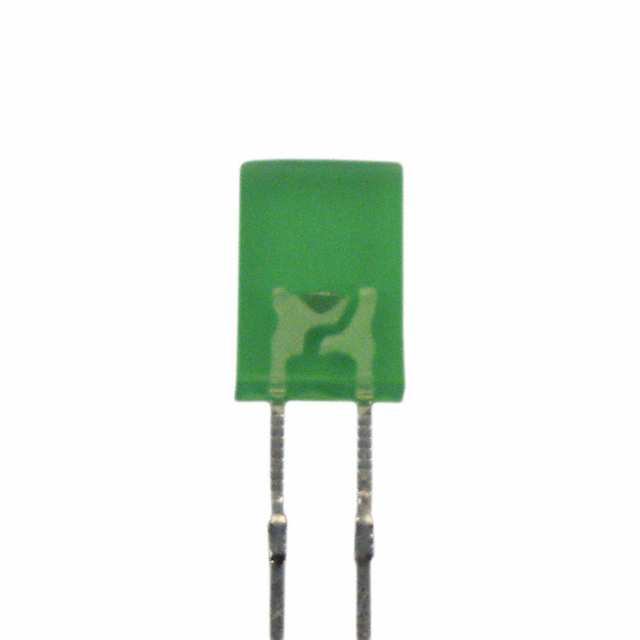

The SunLED XSUG18D is a discrete green LED indicator lamp designed for through-hole mounting. It features a rectangular lens with dimensions of 2mm x 5mm and a diffused finish to enhance visibility. The component operates at a dominant wavelength of 565nm, emitting green light with a typical forward voltage of 1.9V at a test current of 10mA. It offers a viewing angle of 110 degrees and provides an optical intensity of 5mcd. This standard radial configuration is suitable for general-purpose indication applications requiring low power consumption.

LED Indication - Discrete Feature Summary

• Rectangular diffused lens design for enhanced visual indication
• Low power consumption characteristics optimized for efficiency
• Standard radial through-hole mounting configuration

LED Indication - Discrete Applications

• General purpose electronic equipment status indication
• Consumer electronics panel indicators
• Portable device operational status display

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when ordering, as manufacturing specifications may be updated. Confirm that the required optical intensity and voltage parameters align with your circuit design before finalizing procurement. Ensure compatibility with standard through-hole assembly processes. Check for any recent changes in packaging or lead times directly with the manufacturer or authorized distributors.

LED Indication - Discrete Selection Notes

Select this component when a compact, low-power green indicator is required for through-hole PCB assembly. The rectangular form factor allows for dense packing on control panels. Consider the 110-degree viewing angle for visibility requirements. Ensure the driving circuit can supply the necessary 10mA test current while respecting the 1.9V forward voltage drop.

LED Indication - Discrete Part Context

The XSUG18D belongs to SunLED's series of low-power rectangular LED lamps. It shares similar physical dimensions and mounting styles with other variants in the lineup, such as the XSUY18D (yellow) and XSUR18D (red). These components are widely used in industrial and consumer applications where clear, reliable visual feedback is essential.

LED Indication - Discrete Replacement Considerations

Direct substitutes include the XSUY18D for yellow indication and the XSUR18D for red indication, maintaining identical package and electrical interface characteristics. Other manufacturers offering 2x5mm rectangular through-hole LEDs with comparable forward voltage and current ratings may also serve as functional replacements if pinout and mechanical constraints are verified.
