XVDGGHNANF-28.000000

Crystals Overview

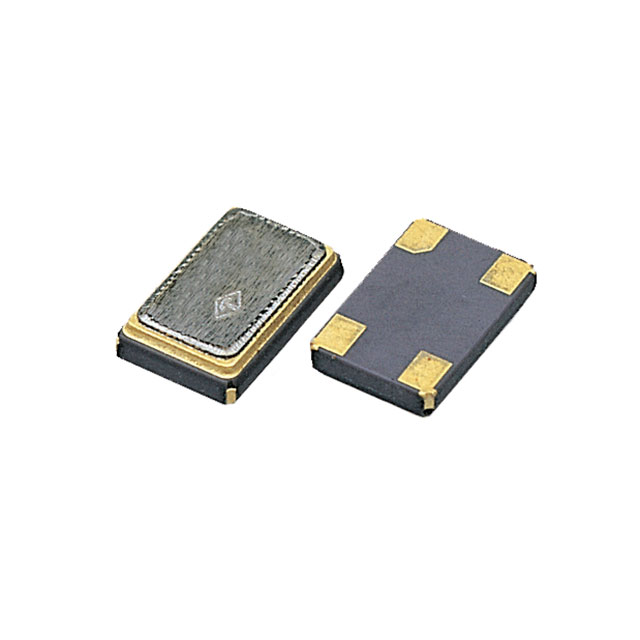

The XVDGGHNANF-28.000000 is a 28 MHz fundamental mode crystal resonator manufactured by Taitien. It features a frequency stability of ±50ppm and a load capacitance of 12pF. The equivalent series resistance (ESR) is specified at 45 Ohms. This component utilizes a 4-SMD, No Lead package with dimensions of 2.55mm x 2.05mm and a maximum height of 0.60mm. It operates within a temperature range of -20°C to 70°C and complies with AEC-Q200 standards.

Crystals Feature Summary

• Fundamental mode operation for precise timing applications
• Miniature surface-mount design for space-constrained PCB layouts
• Automotive-grade reliability certification

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Automotive electronic control units

Crystals Procurement Notes

Verify the specific suffix configuration against the official Taitien datasheet to ensure compatibility with required load capacitance and frequency tolerance specifications. Confirm that the 4-SMD no-lead package footprint matches the target PCB design constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 28 MHz reference with ±50ppm stability is required in a compact SMD form factor. Ensure the circuit design supports a 12pF load capacitance and that the operating environment remains within the specified -20°C to 70°C range for optimal performance.

Crystals Part Context

This part belongs to the Taitien miniature SMD crystal series designed for surface-mount technology. It provides a stable frequency reference for digital circuits requiring fundamental mode resonance. The no-lead construction facilitates automated assembly processes while maintaining electrical integrity in high-volume manufacturing environments.

Crystals Replacement Considerations

Cross-reference with other Taitien crystals offering identical 28 MHz frequency, 12pF load capacitance, and 4-SMD package dimensions. Verify that alternative parts meet the same ±50ppm stability and ESR requirements to ensure functional equivalence in existing designs.
