XXHEELNANF-24.000000

Crystals Overview

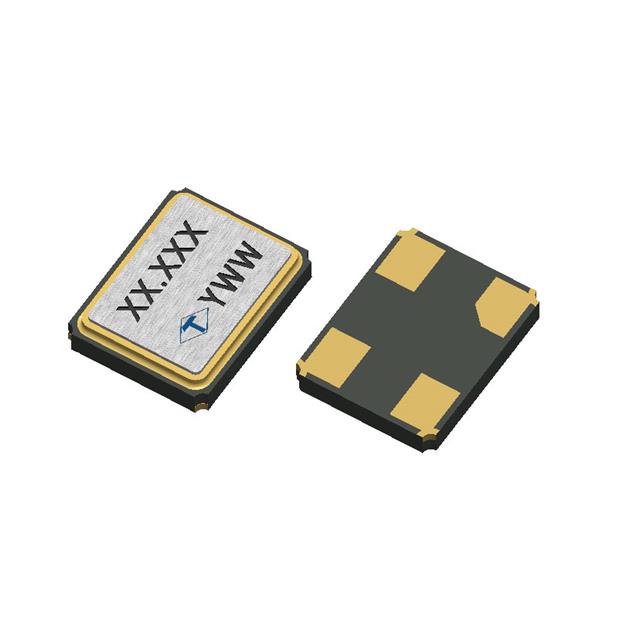

The XXHEELNANF-24.000000 is a parallel fundamental quartz crystal manufactured by Taitien, designed for surface-mount applications. It operates at a nominal frequency of 24 MHz with a frequency tolerance and stability of ±30 ppm. The component features a load capacitance of 20 pF and an equivalent series resistance (ESR) of 60 Ohms. It utilizes a 4-SMD, no lead package with dimensions of 3.20 mm x 2.50 mm. The device is rated for operation within a temperature range of -40°C to +85°C and complies with REACH standards.

Crystals Feature Summary

• Parallel fundamental quartz crystal construction
• Surface-mount 4-SMD no lead package design
• Standard 20 pF load capacitance specification

Crystals Applications

• General purpose clock signal generation
• Microcontroller system timing references
• Digital communication interface synchronization

Crystals Procurement Notes

Verify the specific datasheet revision and electrical parameters directly from Taitien official documentation before integration. Confirm that the 20 pF load capacitance matches the target circuit design requirements. Ensure the ±30 ppm stability meets the system's timing accuracy constraints. Check for any specific handling or soldering guidelines provided in the manufacturer's product data sheet.

Crystals Selection Notes

Select this component when a standard 24 MHz reference is required for space-constrained designs. The 3.20 mm x 2.50 mm footprint suits compact PCB layouts. Consider the ±30 ppm tolerance for applications where moderate frequency drift is acceptable. Evaluate the 60 Ohm ESR against the oscillator circuit's drive level limitations to ensure reliable startup and operation.

Crystals Part Context

This part belongs to Taitien's portfolio of passive quartz crystals and resonators. These components are essential for providing precise frequency control in electronic circuits. The XXHEELNANF series represents a common SMD variant used across various consumer and industrial electronics. Taitien manufactures these devices to meet international quality and environmental standards.

Crystals Replacement Considerations

Cross-reference with other 24 MHz SMD crystals offering similar 20 pF load capacitance and ±30 ppm tolerance. Verify mechanical compatibility with the 3.20 x 2.50 mm footprint. Ensure electrical equivalence regarding ESR and frequency stability before substitution.
