XZCBD54W-1

LED Indication - Discrete Overview

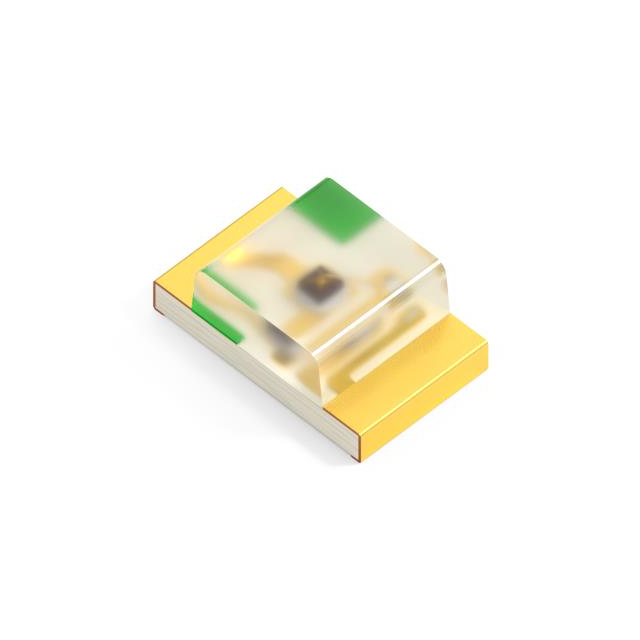

The XZCBD54W-1 is a single-color blue surface-mount LED manufactured by SunLED. It features a water-clear lens and operates at a peak wavelength of 460 nm with a dominant wavelength of 465 nm. The component has a nominal luminous intensity of 98 mcd and a typical forward voltage of 3.3 V at a test current of 20 mA. It utilizes a 0805 (2012 metric) package measuring 2.00 mm in length, 1.25 mm in width, and 0.75 mm in maximum height. The device offers a viewing angle of 120 degrees and is RoHS compliant.

LED Indication - Discrete Feature Summary

• Surface mount construction in a compact 0805 footprint
• Water-clear lens for optimized light transmission
• Wide 120-degree viewing angle for broad visibility

LED Indication - Discrete Applications

• Status indicator lights on electronic devices
• Backlighting applications requiring blue illumination
• Panel indicators for consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm moisture sensitivity level and reflow soldering profile requirements. Ensure electrostatic discharge precautions are followed during handling. Confirm that the required forward voltage and luminous intensity meet the design specifications before finalizing the procurement order.

LED Indication - Discrete Selection Notes

Select this component when a standard blue SMD LED is needed for general indication or backlighting. Consider the 3.3 V forward voltage drop for circuit design. Compare luminous intensity against other variants if higher brightness is required. Verify package dimensions fit the PCB layout constraints.

LED Indication - Discrete Part Context

This part belongs to SunLED's series of single-color surface-mount LEDs. It shares the 0805 form factor with other colors like red and yellow but differs in optical characteristics due to the blue semiconductor material. The model number indicates specific lens type and color configuration within the manufacturer's catalog.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 0805 blue LEDs from different manufacturers with similar pinout and dimensional tolerances. Verify forward voltage and luminous intensity compatibility. Check for equivalent moisture sensitivity levels and thermal resistance ratings.
