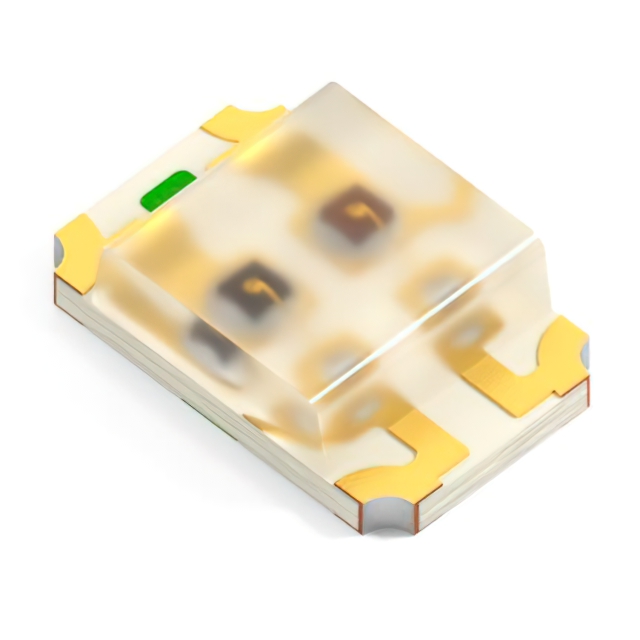

XZCBDMOK54W-4

XZCBDMOK54W-4 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists SunLED. Its product description is LED BLUE/ORANGE CLR CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for XZCBDMOK54W-4

• Description：LED BLUE/ORANGE CLR CHIP SMD
• Series：-
• Mfr：SunLED
• Package：Tape & Reel (TR),Cut Tape (CT)
• Color：Blue, Orange
• Configuration：Independent
• Lens Color：Colorless
• Lens Transparency：Clear
• Millicandela Rating：79mcd Blue, 248mcd Orange
• Lens Style：Rectangle with Flat Top
• Lens Size：1.30mm x 1.25mm
• Voltage - Forward (Vf) (Typ)：3.3V Blue, 2.1V Orange
• Current - Test：20mA Blue, 20mA Orange
• Viewing Angle：120°
• Mounting Type：Surface Mount
• Wavelength - Dominant：465nm Blue, 605nm Orange
• Wavelength - Peak：460nm Blue, 610nm Orange
• Features：-
• Package / Case：0805 (2012 Metric)
• Supplier Device Package：Chip LED
• Size / Dimension：2.00mm L x 1.25mm W
• Height (Max)：0.45mm
• Grade：-
• Qualification：-

LED Indication - Discrete datasheet and documents for XZCBDMOK54W-4
