XZCM2CYK54WA-1VF

LED Indication - Discrete Overview

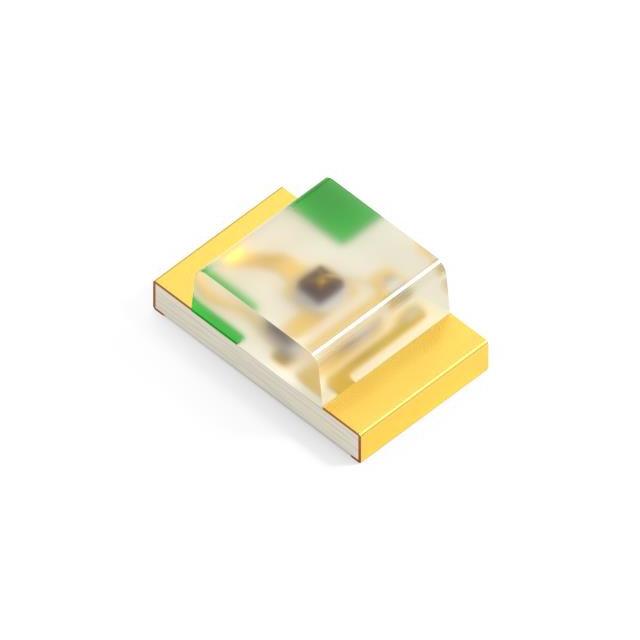

The XZCM2CYK54WA-1VF is a yellow surface-mount LED from SunLED's PixsoLED series, designed for indicator applications. It features an AlGaInP chip emitting at a peak and dominant wavelength of 590nm with a clear water-clear lens. The component utilizes a 0805 (2012 metric) package measuring 2.0mm x 1.2mm x 0.6mm maximum height. Key electrical parameters include a typical forward voltage of 2.1V and a test current of 15mA. It offers a viewing angle of 140 degrees and achieves a luminous intensity of 24mcd.

LED Indication - Discrete Feature Summary

• Ultra-bright low-current design optimized for power efficiency
• Domed lens structure providing a wide 140-degree viewing angle
• RoHS3 compliant construction without lead or halogen content

LED Indication - Discrete Applications

• Status indication on portable electronic devices
• Panel indicators for consumer appliances
• Low-power circuit status monitoring in embedded systems

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm lens clarity and packaging format. Ensure compatibility with standard reflow soldering profiles defined for moisture sensitivity level 3 components. Confirm that the 0805 footprint matches the target PCB layout dimensions before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when high visibility is required alongside strict current limitations. The 15mA test current rating distinguishes it from standard 20mA variants, making it suitable for battery-operated equipment. The 140-degree viewing angle ensures broad visibility compared to narrower beam LEDs.

LED Indication - Discrete Part Context

This part belongs to SunLED's NanoPoint-0201 and PixsoLED families, which focus on miniaturized surface-mount technology solutions. The XZCM2CYK54WA-1VF specifically addresses the demand for compact, high-efficiency indicators in space-constrained modern electronics designs.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same series include XZCDGK54W-1VF. Verify pinout compatibility and thermal characteristics when cross-referencing with other 0805 yellow LEDs from different manufacturers.
