XZFBA155W5MAV

LED Indication - Discrete Overview

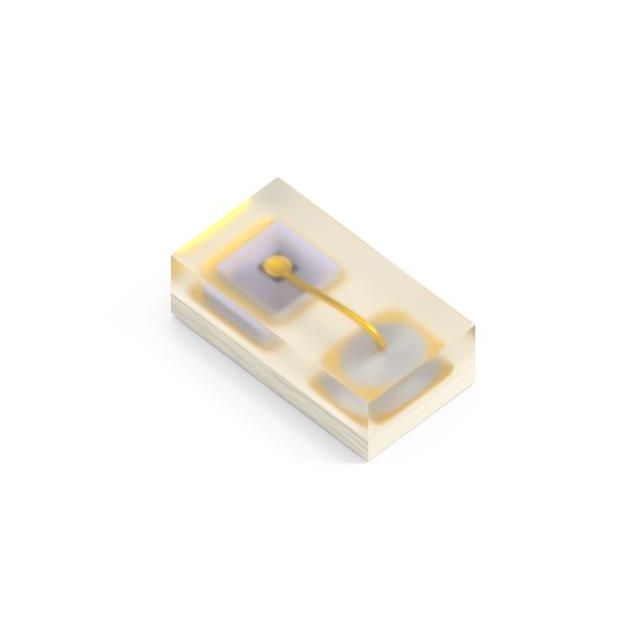

The XZFBA155W5MAV is a single-color blue surface-mount LED indicator manufactured by SunLED. It features a clear, rectangular lens with a flat top and emits light at a peak wavelength of 463nm and a dominant wavelength of 468nm. The component operates with a typical forward voltage of 2.9V at a test current of 5mA, producing an intensity of 59mcd. Housed in a compact 0201 (0603 metric) package measuring 0.65mm x 0.35mm with a maximum height of 0.25mm, it offers a wide viewing angle of 140 degrees.

LED Indication - Discrete Feature Summary

• Ultra-compact 0201 form factor designed for space-constrained printed circuit board layouts
• Wide 140-degree viewing angle ensures visibility from various observation positions
• Clear water-clear lens material provides high optical transparency for the blue emission

LED Indication - Discrete Applications

• Status indication on densely populated electronic control boards
• Power state signaling in miniature consumer devices
• Indicator lighting for portable medical equipment

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact packaging configuration, such as tape and reel or cut tape, as these affect handling procedures. Ensure compliance with moisture sensitivity level requirements during storage and reflow soldering processes. Cross-reference the datasheet for absolute maximum ratings to prevent thermal damage during assembly.

LED Indication - Discrete Selection Notes

Select this component when minimal footprint area is critical due to its 0201 dimensions. Consider the 2.9V forward voltage drop for power supply design compatibility. Evaluate the 59mcd luminous intensity against ambient lighting conditions to ensure adequate visibility for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED indicator series, specifically engineered for surface-mount technology. It represents a standard solution for blue illumination needs where physical size constraints limit the use of larger packages like 0402 or 0603.

LED Indication - Discrete Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may differ in spectral characteristics or mechanical dimensions.
