XZFBB55W-1

LED Indication - Discrete Overview

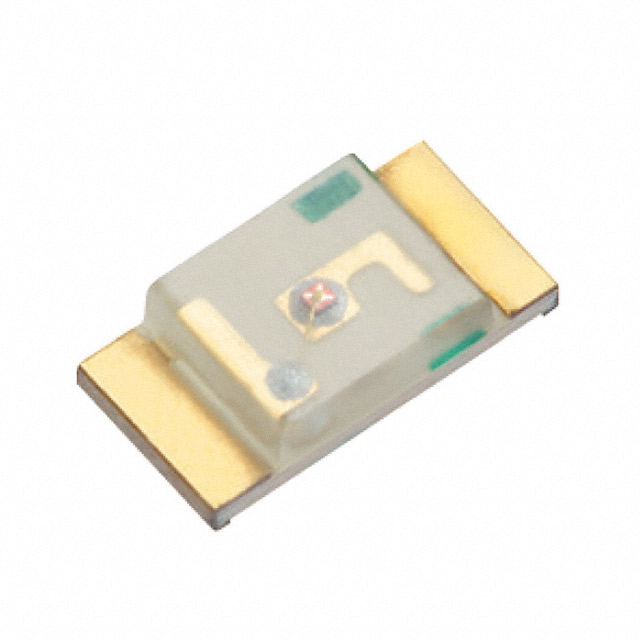

The SunLED XZFBB55W-1 is a single-color blue surface-mount LED designed for indication applications. It features a water-clear rectangular lens with a flat top, measuring 1.90mm by 1.60mm, and has a total height of 1.05mm. The device operates with a typical forward voltage of 3.3V at a test current of 20mA. It emits light at a peak wavelength of 470nm with a viewing angle of 120 degrees. The component is RoHS compliant, lead-free, and packaged in tape and reel format for automated assembly.

LED Indication - Discrete Feature Summary

• Emits blue light at a 470nm peak wavelength with a wide 120-degree viewing angle
• Utilizes a water-clear rectangular lens with a flat top design for uniform illumination
• Supports standard surface-mount technology with a compact 1206 footprint

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Panel indicator lights for consumer devices
• Visual signaling in industrial control equipment

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation to confirm optical characteristics such as wavelength and intensity binning. Ensure the procurement specification matches the required forward voltage tolerance and lens style. Confirm that the tape and reel packaging aligns with your assembly line equipment capabilities. Cross-reference the manufacturer's latest datasheet for any updates on compliance standards or recommended soldering profiles.

LED Indication - Discrete Selection Notes

Select this component when a bright blue indication with a wide viewing angle is required. The 3.3V forward voltage is suitable for standard logic-level driving circuits. Consider the 1206 package size for space-constrained designs requiring robust surface-mount reliability. Evaluate the 120-degree viewing angle against visibility requirements in the final enclosure design.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED indication series, characterized by standardized surface-mount footprints. The XZFBB55W-1 specifically addresses the need for high-visibility blue indicators in compact electronics. It complements other colors in the same physical package family, allowing for consistent mechanical design across multi-color product lines.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same package must match the 470nm wavelength and 3.3V forward voltage. Verify that alternative sources offer identical lens dimensions and viewing angles to maintain visual consistency. Check for equivalent thermal and electrical ratings to ensure reliable operation under similar conditions.
