XZFWS74F

LED Indication - Discrete Overview

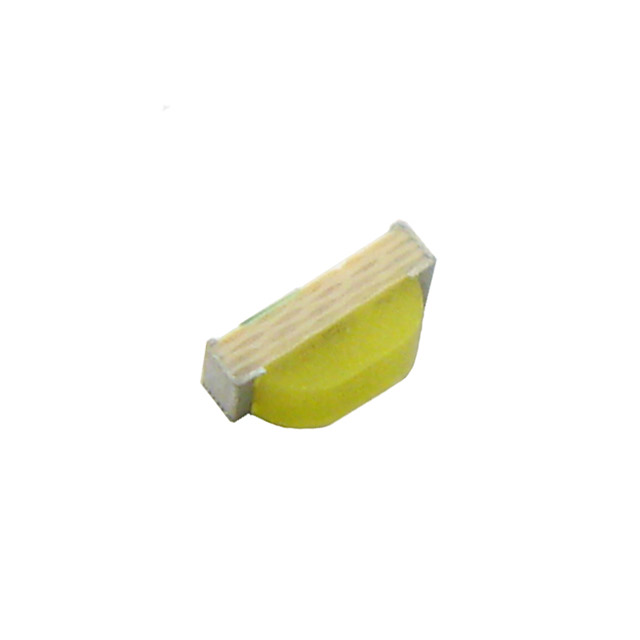

The XZFWS74F is a surface-mount LED indicator manufactured by SunLED, designed for right-angle mounting on printed circuit boards. This component utilizes a 2-SMD, no-lead package with dimensions of 1.70mm x 0.60mm for the lens and an overall size of 2.10mm in length. It emits white light with a peak wavelength characteristic of the color, housed in a clear lens. The device operates with a typical forward voltage of 3.3V at a test current of 20mA. It features a wide viewing angle of 120 degrees and meets RoHS3 compliance standards.

LED Indication - Discrete Feature Summary

• Right-angle surface mount configuration for space-constrained PCB layouts
• Wide 120-degree viewing angle for enhanced visibility
• Clear rectangular lens with domed top design

LED Indication - Discrete Applications

• Electronic device status indication
• Power supply unit signaling
• Consumer appliance control panels

LED Indication - Discrete Procurement Notes

Verify that the specific order matches the XZFWS74F part number to ensure correct white light emission and 3.3V forward voltage characteristics. Confirm packaging requirements such as tape and reel specifications against project needs. Check for RoHS3 compliance documentation if required by regulatory standards. Ensure handling procedures account for Moisture Sensitivity Level 3 classification during storage and reflow processes.

LED Indication - Discrete Selection Notes

Select this component when a right-angle LED footprint is required for compact designs. The 2-SMD no-lead package suits automated assembly processes. Consider the 3.3V forward voltage drop for power budget calculations. The 120-degree viewing angle provides broad visibility compared to narrower beam LEDs. Verify mechanical clearance for the right-angle orientation before finalizing the layout.

LED Indication - Discrete Part Context

This component belongs to SunLED's discrete LED indicator series, which offers various colors and package styles for general-purpose indication. The XZFWS74F specifically addresses applications needing right-angle illumination within small form factors. It complements other SMD LEDs in the portfolio that may differ in color or mounting orientation.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
