XZM2CRK168WA

LED Indication - Discrete Overview

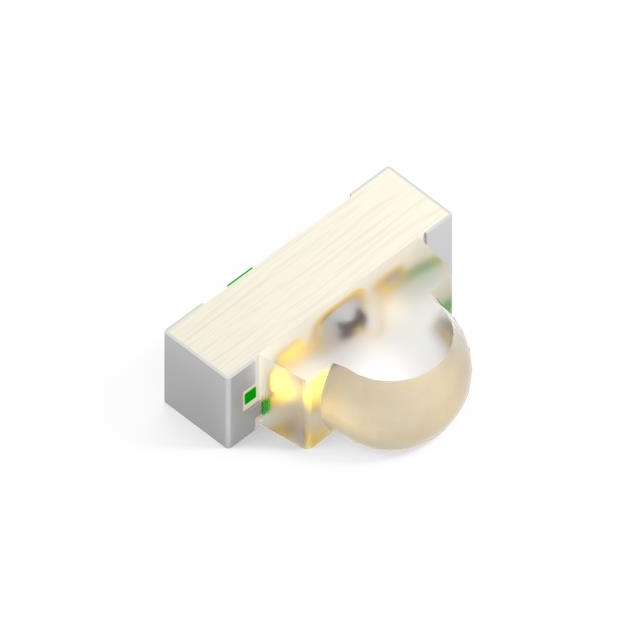

The XZM2CRK168WA is a red light-emitting diode manufactured by SunLED, designed for discrete indicator applications. It features a clear lens with a dome style and emits light at a peak wavelength of 640nm. The component operates with a typical forward voltage of 2.2V and a test current of 20mA. It utilizes a 2-SMD, no-lead package with dimensions of 2.10mm in length and 1.00mm in width, reaching a maximum height of 0.70mm. The device provides a viewing angle of 120 degrees and achieves an intensity of 1097mcd.

LED Indication - Discrete Feature Summary

• Emits red light with a peak wavelength of 640nm
• Features a clear lens with a dome style for broad visibility
• Utilizes a compact 2-SMD surface-mount package
• Provides high luminous intensity of 1097mcd

LED Indication - Discrete Applications

• Indicator lights for handheld electronic products
• Status indication on portable devices
• General-purpose visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging configuration, such as tape and reel or cut tape, matches production requirements. Confirm that the RoHS3 compliance status aligns with environmental regulations for the target market. Check the moisture sensitivity level (MSL) rating to determine storage conditions and floor life constraints during assembly processing. Ensure the supplier documentation references the official SunLED datasheet for accurate electrical characteristics.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity red indicator is required for space-constrained designs. The 2-SMD form factor supports automated surface-mount assembly processes. Consider the 120-degree viewing angle for applications requiring wide-angle visibility. Verify that the 2.2V forward voltage drop is compatible with the driving circuit's output capabilities. Compare the physical dimensions against the PCB footprint to ensure proper placement and clearance.

LED Indication - Discrete Part Context

This part belongs to the SunLED XZM2 series, which focuses on robust packages suitable for handheld products. The manufacturer emphasizes long life and reliability in this product line. The component is categorized under discrete LED indicators within the optoelectronics sector. It shares design principles with other single-color SMD LEDs from the same manufacturer, prioritizing durability and consistent optical performance.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-referencing requires matching the 2-SMD package, 640nm peak wavelength, and 1097mcd intensity specifications. Verify pinout compatibility and thermal characteristics before substituting with generic equivalents.
