XZM2CRK89S-1

LED Indication - Discrete Overview

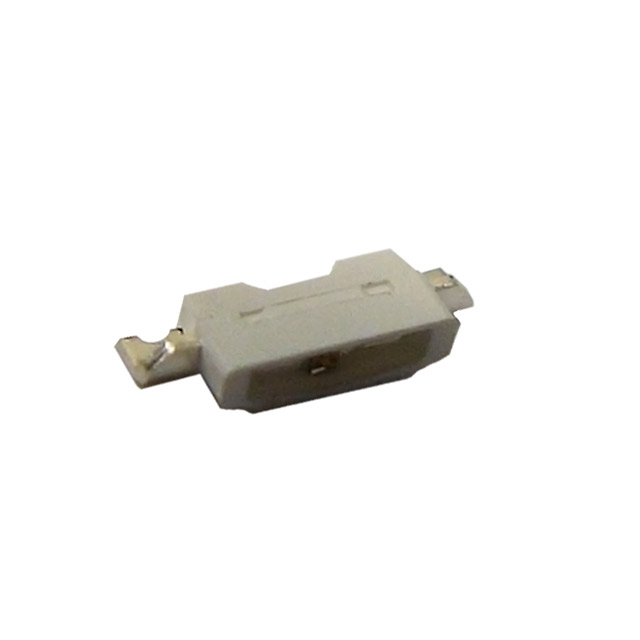

The XZM2CRK89S-1 is a red surface-mount LED from SunLED, emitting at a dominant wavelength of 625nm and a peak of 640nm. It features a clear lens with a 120-degree viewing angle and operates at a typical forward voltage of 2.2V under a 20mA test current. The component utilizes a 2-SMD right-angle package measuring 2.9mm by 1.4mm, with a maximum height of 0.80mm. It provides a brightness rating of 447mcd and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Right-angle SMD configuration for vertical board mounting
• Wide 120-degree viewing angle for enhanced visibility
• Clear colorless lens design for standard indication

LED Indication - Discrete Applications

• Electronic device status indication
• Panel indicator lights
• Appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix '89S-1' to ensure the correct right-angle package variant, as other suffixes may indicate different dimensions or lens styles. Confirm RoHS3 compliance requirements for your assembly process. Check moisture sensitivity level (MSL 3) handling protocols during storage and reflow soldering to maintain component integrity.

LED Indication - Discrete Selection Notes

Select this component when a vertical mounting profile is required for space-constrained designs. The 120-degree viewing angle offers broader visibility compared to narrower beam LEDs. Ensure the circuit design accommodates the 2.2V forward voltage drop at the specified 20mA operating current.

LED Indication - Discrete Part Context

This part belongs to SunLED's discrete LED portfolio, designed for general-purpose indication. It shares the red emission characteristics of the XZM2CRK series but differs in physical orientation and package geometry. The right-angle form factor distinguishes it from standard top-view counterparts like the XZM2CRK53WA-8ST.

LED Indication - Discrete Replacement Considerations

Direct substitutes require matching the 2-SMD right-angle package and 625nm red emission. Verify that alternative components support the same 2.9mm x 1.4mm footprint and 0.80mm height constraints to fit existing PCB layouts without mechanical interference.
