XZM2CYK45S-9

LED Indication - Discrete Overview

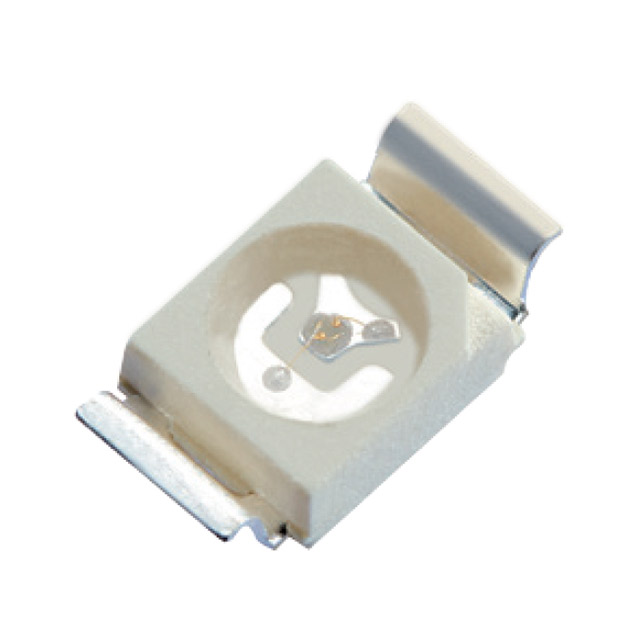

The XZM2CYK45S-9 is a single-color yellow LED indicator from SunLED, designed for surface-mount assembly in a 2-PLCC package. It emits light at a dominant wavelength of 590nm with a peak wavelength of 590nm. The component features a clear lens and operates with a typical forward voltage of 2V at a test current of 20mA. It provides a millicandela rating of 497mcd and offers a viewing angle of 120 degrees. The physical dimensions are 3.20mm in length, 2.80mm in width, and a maximum height of 2.10mm.

LED Indication - Discrete Feature Summary

• Utilizes a standard 2-PLCC surface-mount package for reliable bottom-entry installation on printed circuit boards.
• Features a water-clear lens style to maximize light transmission and visibility for indication applications.
• Constructed with a robust plastic body suitable for long-life operation in handheld electronic products.

LED Indication - Discrete Applications

• Status indication in handheld consumer electronics
• Power status indicators on portable devices
• General-purpose visual signaling in compact circuitry

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure compatibility with required lens clarity and mounting orientation. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity.

LED Indication - Discrete Selection Notes

Select this component when a low-profile yellow indicator is required for space-constrained designs. The 2-PLCC form factor supports automated pick-and-place manufacturing processes. Ensure the driving circuit can accommodate the 2V forward voltage drop and 20mA operating current specifications for optimal performance.

LED Indication - Discrete Part Context

This model belongs to SunLED's NinjaLED series of PLCC2 SMD LEDs, which are engineered for high reliability and consistent optical performance. The series is widely adopted in the electronics industry for compact indication needs. The XZM2CYK45S-9 variant specifically targets applications requiring a clear lens and yellow emission within a standard surface-mount footprint.

LED Indication - Discrete Replacement Considerations

Direct substitutes include XZM2ACY45S and XZM2CYK45WT-9. Verify pinout compatibility and forward voltage tolerances before substitution. Ensure the replacement part matches the required lens transparency and mechanical dimensions for proper board integration.
