YA5825W

Antennas RF Overview

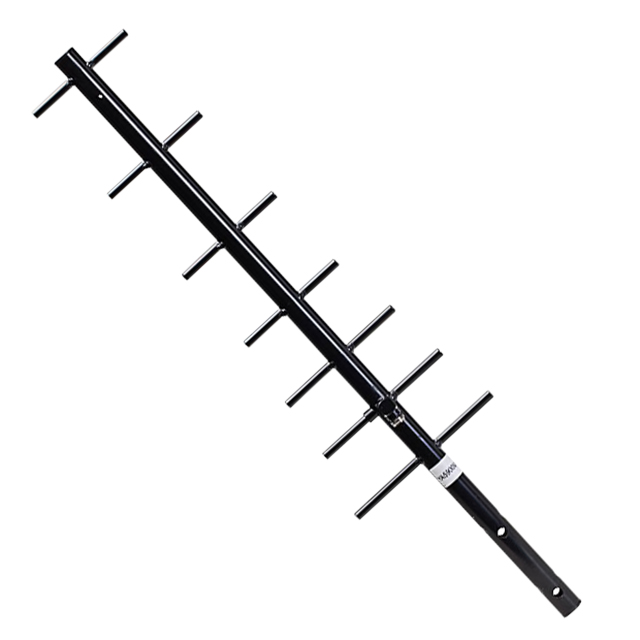

The YA5825W is a Yagi directional antenna manufactured by Pulse Electronics, designed for UHF frequency bands. It operates within the 824MHz to 896MHz range with a center frequency of 855MHz. The component provides an antenna gain of 11dBi and supports a maximum power handling capacity of 300W. It features an N-type female connector for termination and utilizes a pole clamp mounting type. The physical height is specified at a maximum of 794.00mm (31.260 inches).

Antennas RF Feature Summary

• High-gain directional radiation pattern optimized for long-range communication links.
• Robust construction with fully welded elements suitable for harsh environments.
• Integrated pole clamp mounting hardware for straightforward installation.

Antennas RF Applications

• Remote monitoring systems in industrial settings
• SCADA network infrastructure
• Mining and utility sector communications

Antennas RF Procurement Notes

Verify compliance with RoHS regulations as this specific model may not meet current environmental standards. Confirm that the N-type female interface aligns with existing cabling infrastructure. Ensure the pole clamp mounting method is compatible with the intended structural support. Review datasheet specifications for VSWR limits to guarantee system impedance matching requirements are satisfied before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when high gain is required for line-of-sight applications in the 824-896MHz band. Consider the 300W power rating for high-power transmitter setups. Evaluate the 794mm height against spatial constraints. Compare against lower-gain variants if compactness is prioritized over range. Ensure the N-type connector matches the feed line configuration.

Antennas RF Part Context

This part belongs to the Pulse Larsen Yagi series, which specializes in high-gain directional antennas for UHF frequencies. These components are engineered for reliability in demanding outdoor conditions. The series typically includes various gain options and element counts to suit different coverage area requirements across cellular and LMR spectrum allocations.

Antennas RF Replacement Considerations

The YA6825W serves as a related variant within the same product family, offering similar directional characteristics but with different gain specifications. Verify connector compatibility and mounting requirements when substituting between models to ensure mechanical fit.
