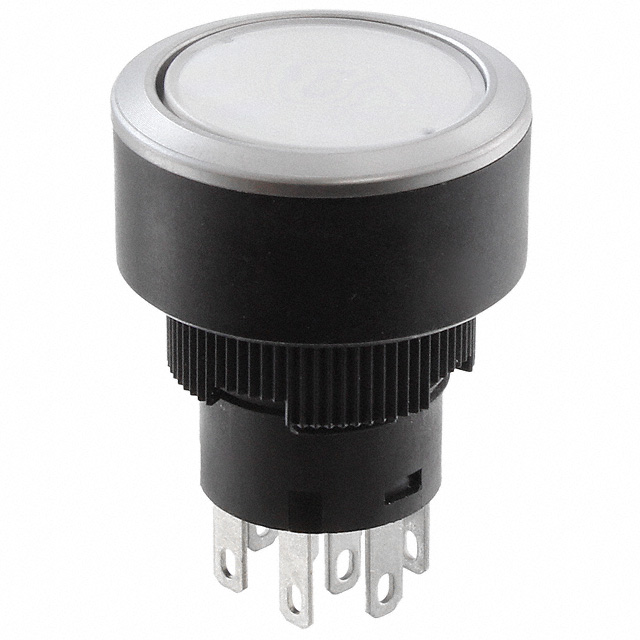

Pushbutton Switches YB226CWCPW01-5D-JS product image

YB226CWCPW01-5D-JS

$42.14

Description：SWITCH PUSHBUTTON DPDT 3A 125V
Series：YB2
Mfr：NKK Switches
Package：Bulk,Bulk

SKU:b93c8c00eb10 Category: Pushbutton Switches Brand: NKK Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

YB226CWCPW01-5D-JS is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH PUSHBUTTON DPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for YB226CWCPW01-5D-JS

Description：SWITCH PUSHBUTTON DPDT 3A 125V
Series：YB2
Mfr：NKK Switches
Package：Bulk,Bulk
Mounting Type：Panel Mount, Front
Type：Standard, Illuminated
Circuit：DPDT
Switch Function：On-On
Current Rating (Amps)：3A (AC/DC)
Actuator Type：Round, Button, Flush
Actuator Marking：No Marking
Color - Actuator/Cap：Silver
Illumination Type, Color：LED, Amber
Illumination Voltage (Nominal)：2 VDC
Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection：IP65 - Dust Tight, Water Resistant
Features：Tactile/Audible Feedback
Panel Cutout Dimensions：Circular - 22.00mm Dia
Operating Temperature：-25°C ~ 50°C
Voltage Rating - DC：30 V
Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for YB226CWCPW01-5D-JS
