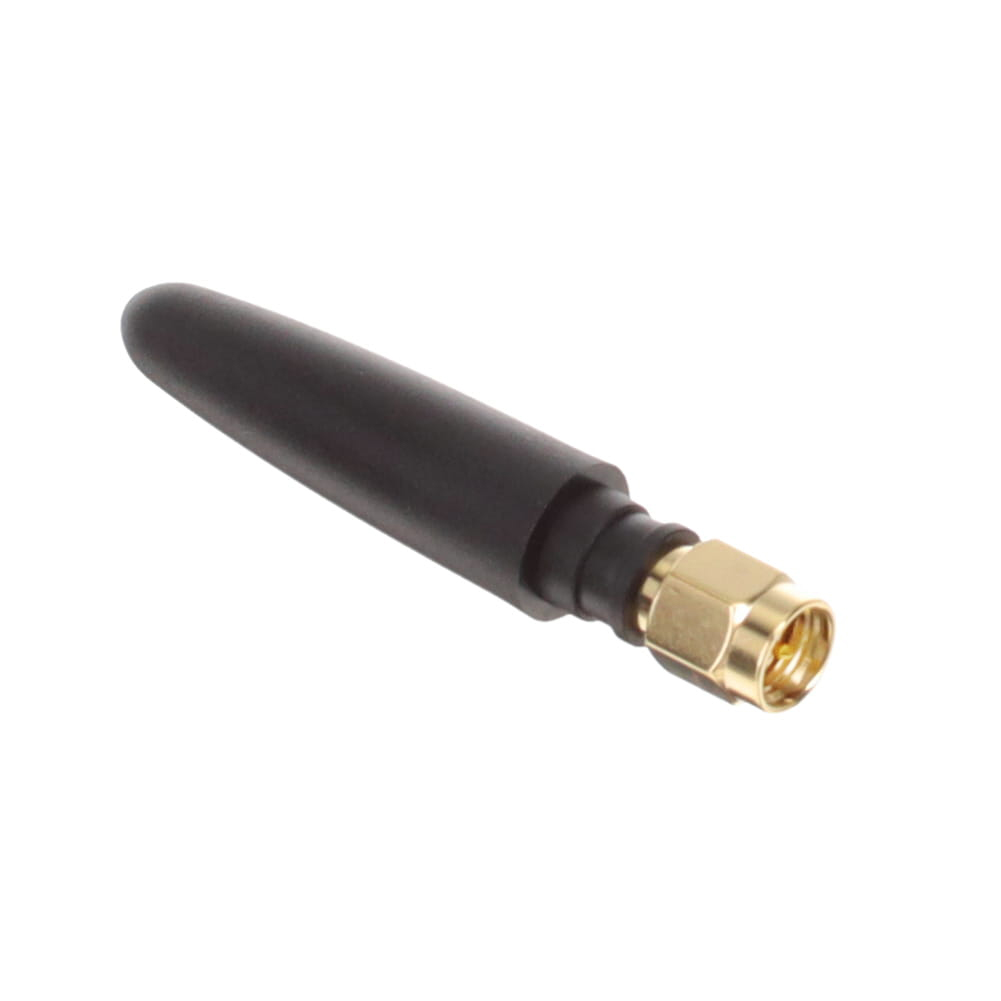

YE0008BA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quectel. Its product description is EXTERNAL, 824960, 17102170 , 2G/. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YE0008BA
- Description：EXTERNAL, 824960, 17102170 , 2G/
- Series：-
- Mfr：Quectel
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 2.2GHz
- Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
- Antenna Type：Whip, Straight
- Number of Bands：2
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.087" (53.00mm)
- Applications：4G, LTE
- Power - Max：-
Antennas RF datasheet and documents for YE0008BA
Antennas RF Overview
The Quectel YE0008BA is a 4G LTE whip antenna designed for external mounting. It supports frequency bands from 698MHz to 960MHz and 1.71GHz to 2.69GHz, ensuring compatibility with major global LTE standards. The component features an SMA male connector for secure attachment to host devices. Its straight whip design facilitates installation in various orientations. This antenna provides reliable signal reception for IoT applications requiring robust cellular connectivity.
Antennas RF Feature Summary
- Supports primary 4G LTE frequency bands
- Compatible with backward 3G/2G/LPWA networks
- External whip design minimizes internal interference
- SMA male connector for direct device integration
Antennas RF Applications
- IoT gateways
- Industrial monitoring systems
- Smart metering devices
- Vehicle telematics units
Antennas RF Procurement Notes
Verify the specific frequency band support against target regional network requirements before deployment. Confirm that the host equipment interface matches the SMA male connector specification. Ensure mechanical clearance accommodates the antenna height during installation. Check environmental ratings if the application involves outdoor exposure or extreme temperatures.
Antennas RF Selection Notes
Choose this model when external placement is feasible to maximize signal integrity. It is suitable for devices where internal antennas suffer from shielding or material interference. Consider the SMA connector type for compatibility with existing module interfaces. Evaluate the need for backward compatibility with legacy 3G or 2G networks in the deployment region.
Antennas RF Part Context
This component belongs to Quectel's dedicated RF antenna portfolio, distinct from their cellular modules. It serves as a passive accessory designed to enhance the performance of compatible LTE and LPWA modules. The product line focuses on providing optimized radiation patterns and gain for various form factors and installation scenarios.
Antennas RF Replacement Considerations
Direct substitutes must match the SMA male connector and cover the same frequency ranges. Verify mechanical dimensions to ensure fit within the enclosure. Cross-reference with other Quectel whip antennas like YEBT series for similar functionality, ensuring band coverage aligns with specific regional network deployments.
