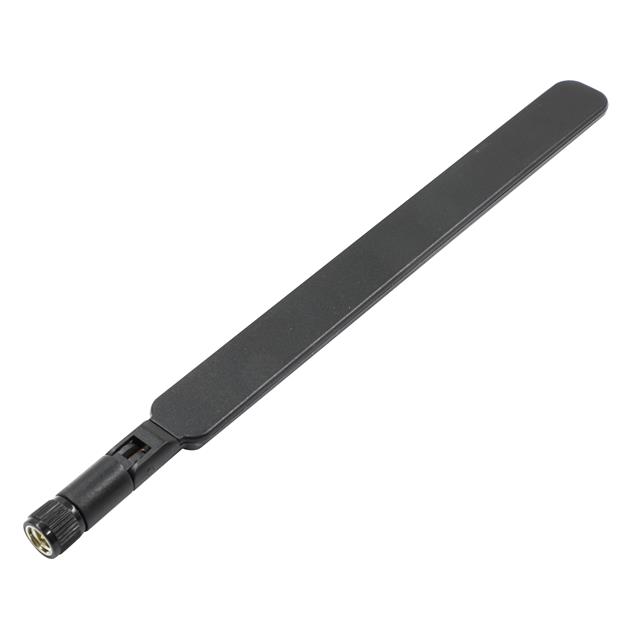

YE0009AA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quectel. Its product description is EXTERNAL DIPOLE LTE ANTENNA SMAM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YE0009AA
- Description：EXTERNAL DIPOLE LTE ANTENNA SMAM
- Series：-
- Mfr：Quectel
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.228GHz, 1.505GHz, 1.762GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
- Frequency Range：698MHz ~ 960MHz, 824MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
- Antenna Type：Whip, Straight
- Number of Bands：9
- VSWR：3
- Return Loss：-
- Gain：1.7dBi, 1.9dBi, 3dBi, 2.6dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：IP55
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.480" (190.00mm)
- Applications：LTE
- Power - Max：-
Antennas RF datasheet and documents for YE0009AA
Antennas RF Overview
The Quectel YE0009AA is a terminal-mount external rubber monopole antenna designed for cellular applications. It features an SMA male connector and measures 16mm in diameter with a length of 190mm. The antenna supports multiple frequency bands including 824 MHz minimum, 868 MHz, 933 MHz, 1.8 GHz, 1.9 GHz, 2.2 GHz, and 2.5 GHz. It is RoHS 2.0 compliant and categorized as a passive indoor antenna suitable for GSM, LTE, 2G, 3G, 4G, and 5G wireless systems.
Antennas RF Feature Summary
- Terminal mount design with flexible rubber whip construction
- SMA male connector interface for direct module attachment
- Broadband coverage supporting multiple cellular generations
Antennas RF Applications
- Cellular radio connectivity
- Wireless IoT device integration
- LTE and 4G/5G modem deployment
Antennas RF Procurement Notes
Verify the specific frequency band requirements against the target network infrastructure before procurement. Confirm that the SMA male connector type matches the host device interface. Ensure the 190mm physical length fits within the intended installation space constraints. Check RoHS 2.0 compliance status if required by regional regulations.
Antennas RF Selection Notes
Select this model when a compact, terminal-mount solution is required for cellular modules. The broadband capability allows compatibility across various LTE and legacy networks. Consider the straight whip form factor for easy routing in confined spaces. Validate impedance matching with the connected transceiver to ensure optimal signal transmission efficiency.
Antennas RF Part Context
This component belongs to Quectel's external antenna portfolio, complementing their range of wireless communication modules. It serves as a passive RF accessory rather than an active processing unit. The product line focuses on providing reliable connectivity solutions for industrial and consumer IoT devices requiring stable cellular reception.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users must verify mechanical fit and electrical specifications when considering alternative antennas from other manufacturers or different Quectel models.
