YF0017GA

Antennas RF Overview

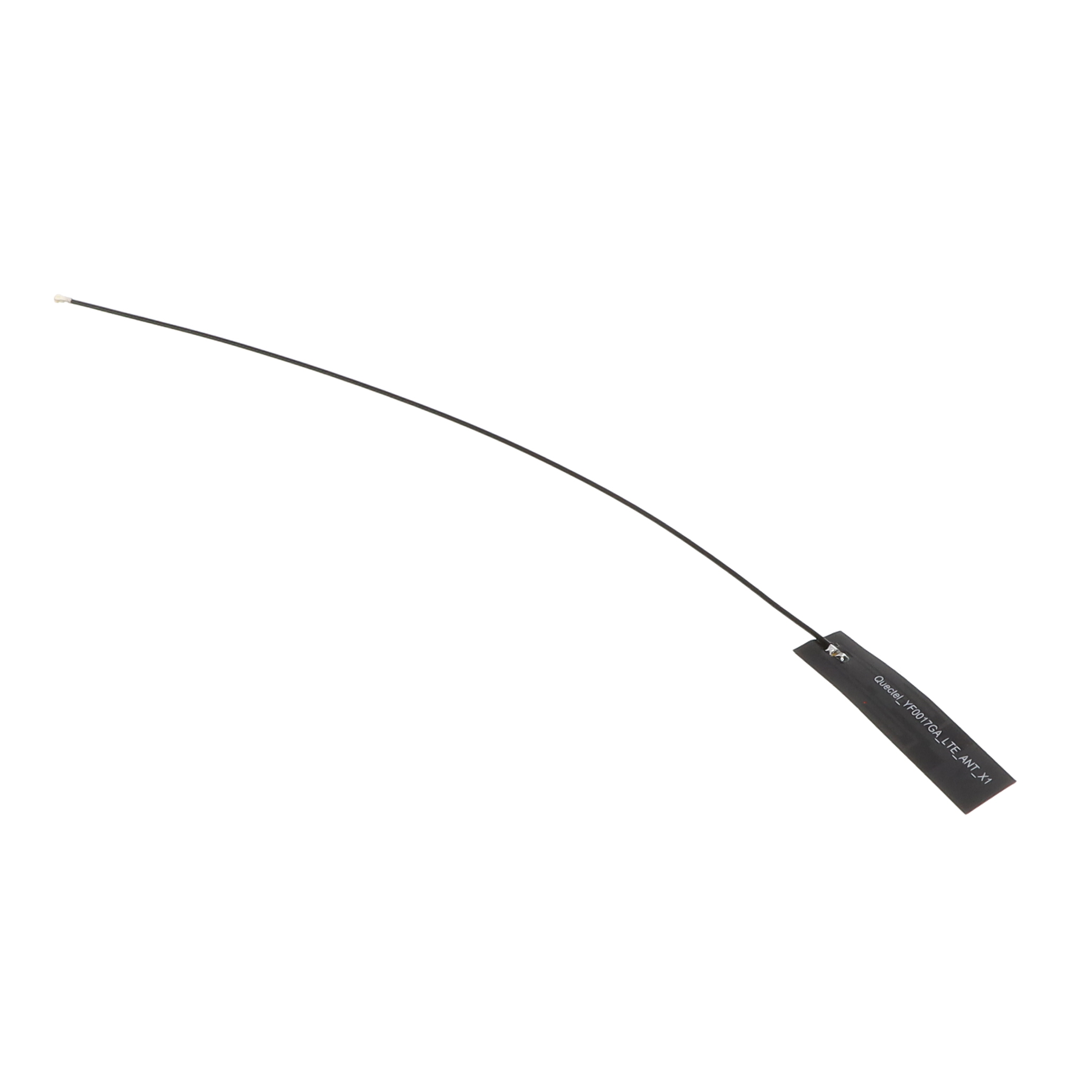

The Quectel YF0017GA is an embedded passive dipole antenna designed for cellular and GNSS applications. It operates within a frequency range of 1.1 GHz to 6 GHz, supporting protocols including 5G, LTE, GSM, UMTS, and GPS/GLONASS/Beidou. The unit features a 49x13 mm FPC trace with adhesive mounting and a 201 mm cable terminating in an IPEX MHF4L connector. Key electrical parameters include 50 Ohms impedance, 4.88 dBi gain, and a VSWR of 3. It functions between -20°C and +85°C.

Antennas RF Feature Summary

• Supports multi-protocol communication including 5G, LTE, and GNSS standards
• Utilizes flexible printed circuit (FPC) design with adhesive mounting for compact integration
• Integrates a short cable length with standard RF connector interface

Antennas RF Applications

• Cellular radio modules requiring embedded connectivity
• IoT devices utilizing LTE and NB-IoT protocols
• Wireless applications integrating GPS or GLONASS positioning

Antennas RF Procurement Notes

Verify the specific suffix designation during procurement, as variations may exist within the product line. Confirm that the component meets RoHS and REACH compliance requirements for your target market. Ensure the IPEX MHF4L connector type matches the host device interface. Check current lifecycle status, as availability may be subject to change.

Antennas RF Selection Notes

Select this model when space constraints require an embedded solution rather than a protruding antenna. The wide frequency coverage allows support for multiple generations of cellular technology. Verify that the operating temperature range aligns with the environmental conditions of the final assembly. Consider the cable length and connector orientation for optimal routing within the enclosure.

Antennas RF Part Context

This component belongs to Quectel's embedded antenna portfolio, specifically engineered for integration into wireless modules and IoT hardware. It serves as a critical accessory for cellular communication modules, enabling reliable signal transmission and reception without external protrusions. The design prioritizes low profile and secure attachment methods.

Antennas RF Replacement Considerations

Check for direct substitutes within the same manufacturer series that offer identical connector types and mechanical dimensions. Verify frequency coverage compatibility if replacing with a different model. Ensure any alternative part maintains the required VSWR and gain specifications for the application.
