YF0026AA

$1.65

Description：WIFI/BT ANTENNA
Series：-
Mfr：Quectel
Package：Bag

SKU:bd524bbc785d Category: RF Antennas Brand: Quectel

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

YF0026AA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quectel. Its product description is WIFI/BT ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for YF0026AA

Description：WIFI/BT ANTENNA
Series：-
Mfr：Quectel
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：2
Return Loss：-
Gain：5.5dBi
Features：Cable - 100mm
Termination：I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.005" (0.12mm)
Applications：Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for YF0026AA

YF0026AA

Antennas RF Overview

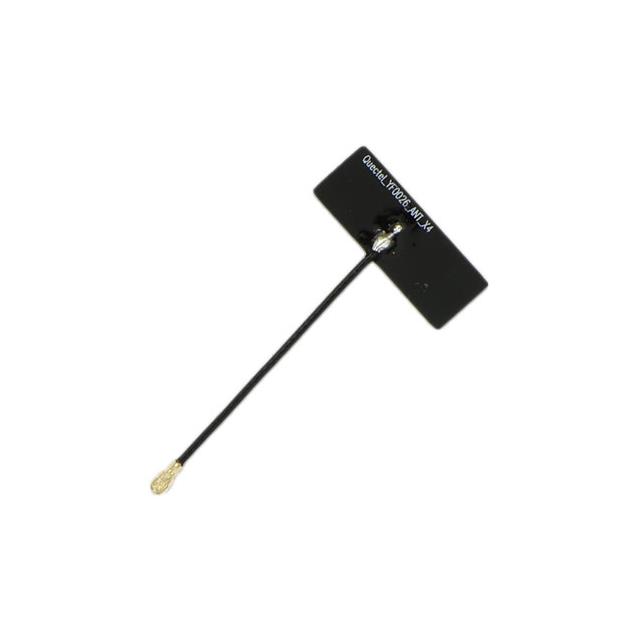

The Quectel YF0026AA is an embedded Wi-Fi and Bluetooth Low Energy (BLE) antenna utilizing a PIFA design with FPC and cable construction. It supports three frequency bands: 2400–2500 MHz, 5150–5850 MHz, and 5925–7125 MHz. The component features a gain of 5.5 dBi, operates at 50 ohms impedance, and maintains a VSWR of 2. Designed for adhesive mounting, it includes a 100mm cable terminated with an IPEX MHF I connector. The unit complies with RoHS and REACH standards and functions within a temperature range of -30°C to +85°C.

Antennas RF Feature Summary

Supports Wi-Fi 6 and Bluetooth/BLE protocols across three distinct frequency bands
Utilizes a PIFA structure with flexible printed circuit and cable assembly
Features adhesive mounting style for embedded integration

Antennas RF Applications

Wi-Fi 6 connectivity modules
Bluetooth and BLE enabled devices
Embedded IoT hardware requiring adhesive installation

Antennas RF Procurement Notes

Verify the specific IPEX MHF I connector type and cable length against the official datasheet before procurement. Confirm that the adhesive mount specifications align with the target device's surface requirements. Ensure compliance with RoHS and REACH regulations as stated in the product documentation. Cross-reference the frequency bands with the intended application's regulatory domain.

Antennas RF Selection Notes

Select this model when a low-profile embedded solution supporting both Wi-Fi 6 and Bluetooth is required. The adhesive mounting method simplifies assembly compared to screw-mounted alternatives. Consider the 100mm cable length for routing flexibility within compact enclosures. Verify that the operating temperature range meets the environmental conditions of the final deployment scenario.

Antennas RF Part Context

This component belongs to Quectel's embedded antenna portfolio designed for wireless communication modules. It integrates PIFA technology to provide efficient radiation patterns in space-constrained environments. The combination of FPC and cable allows for versatile placement relative to the main PCB. It serves as a critical RF interface for modern IoT and mobile connectivity applications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Quectel resources for potential cross-references or updated models.
